Ultra High Definition & Clarity
Immerse yourself in the details with our 4K UHD magnificent picture clarity that is four times the resolution of regular HD.
No Ventilation Needed
The ad notam screen requires no ventilation due to low voltage operation and external positioning of the power adaptor.
Low Voltage Safety Product
ad notam screens are low voltage products (DC 24V) and therfore safe for operation in special environments. All of our displays are equipped with external power supply. This facilitates service & regulates heat sync.
Performant High Brightness
Our high brightness technology allows the image to shine through the mirror without picture degradation as known from other Mirror TVs and with minimal glare. Our superb quality displays provide our customers with crisp, legible content delivery in various ambient lighting conditions.
SILVER MAGIC MIRROR
Best possible vanishing technology

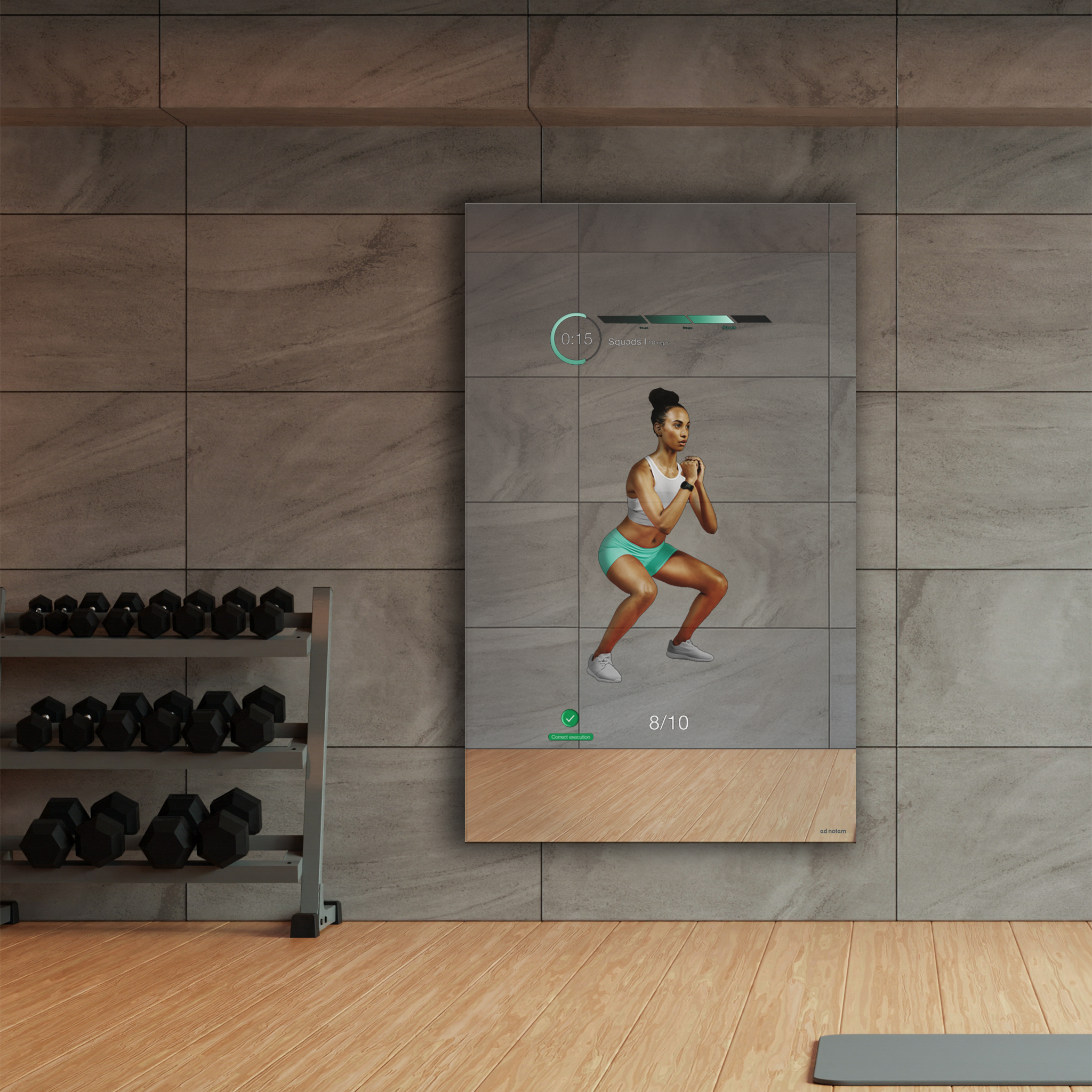

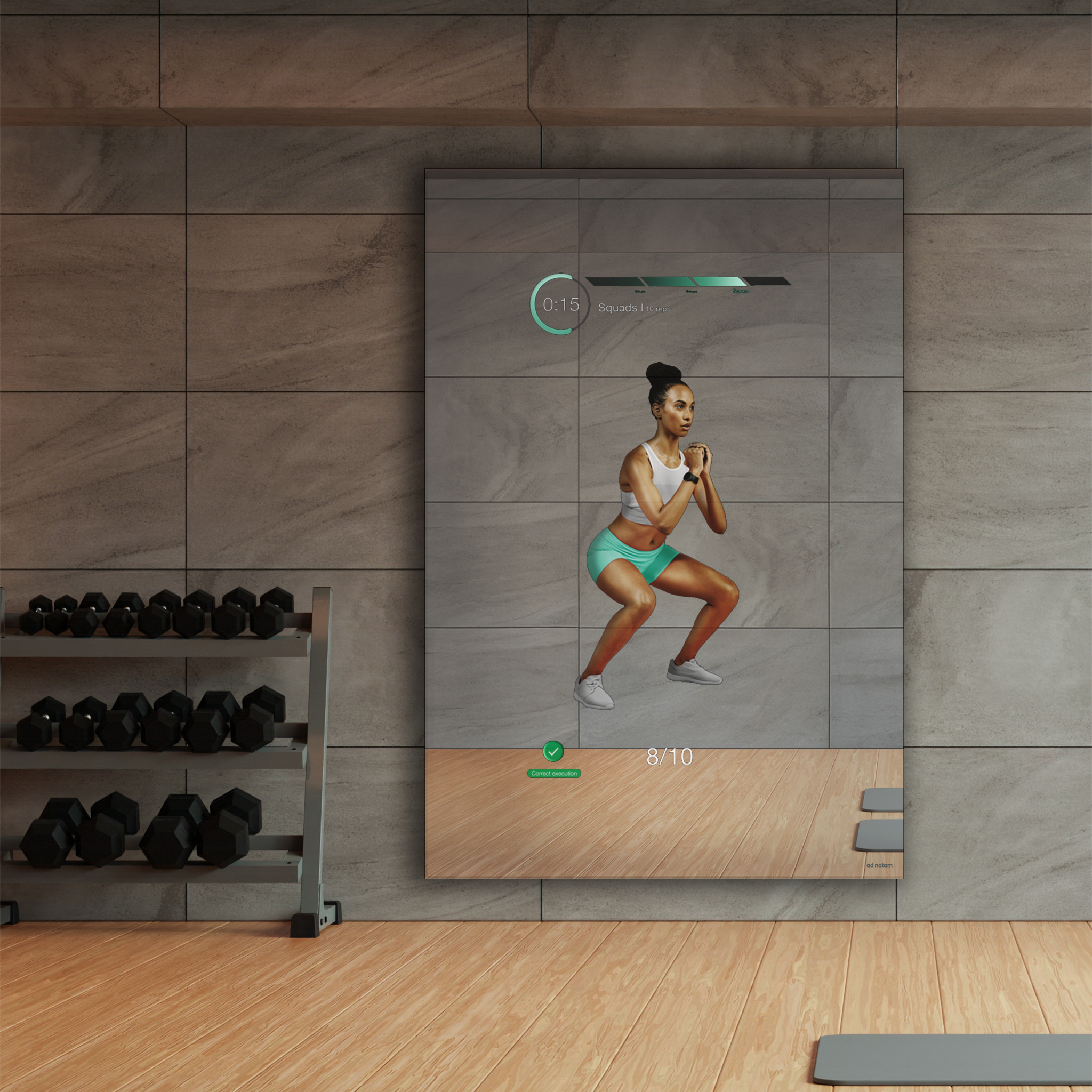

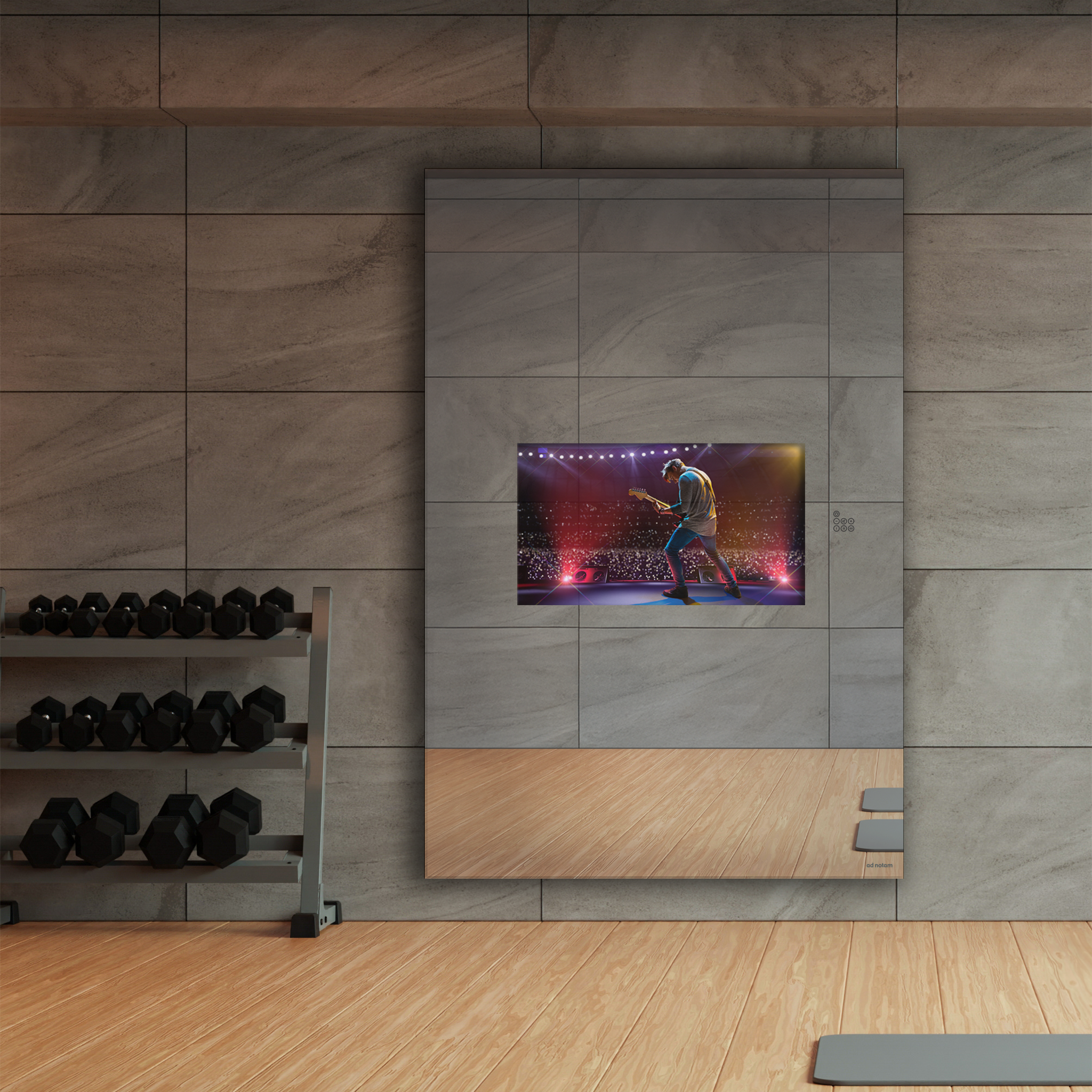

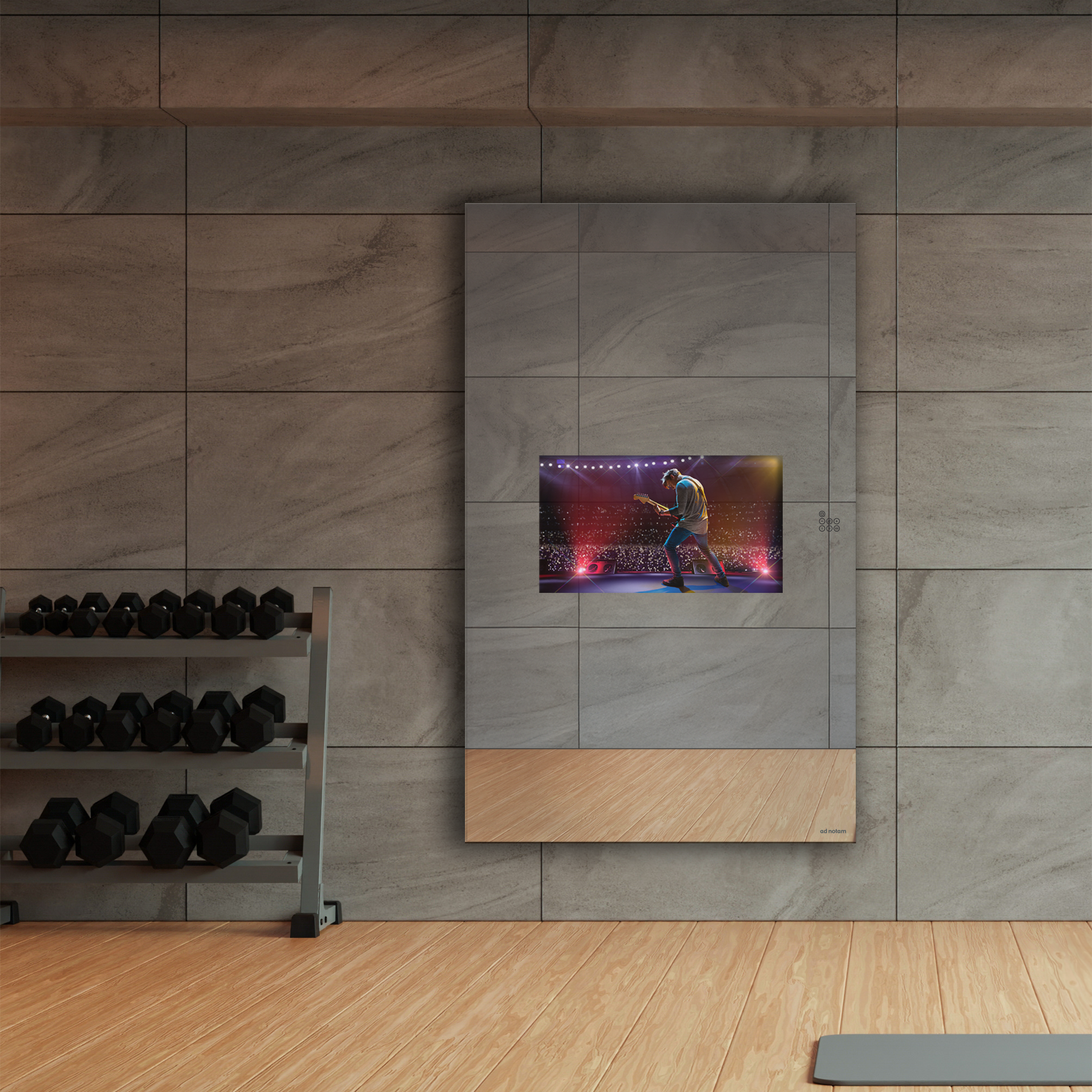

Switched ON
Brilliant TV picture quality ...

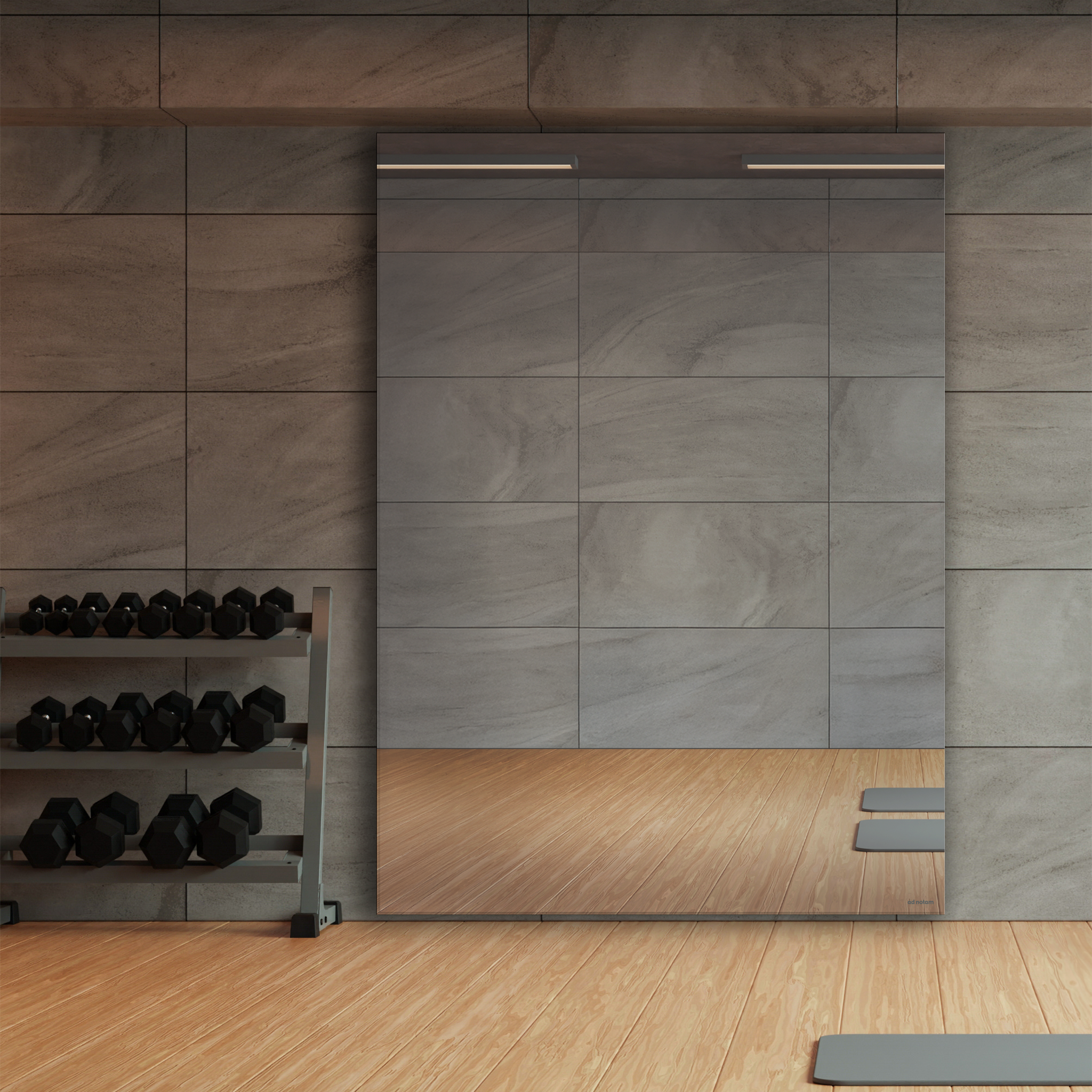

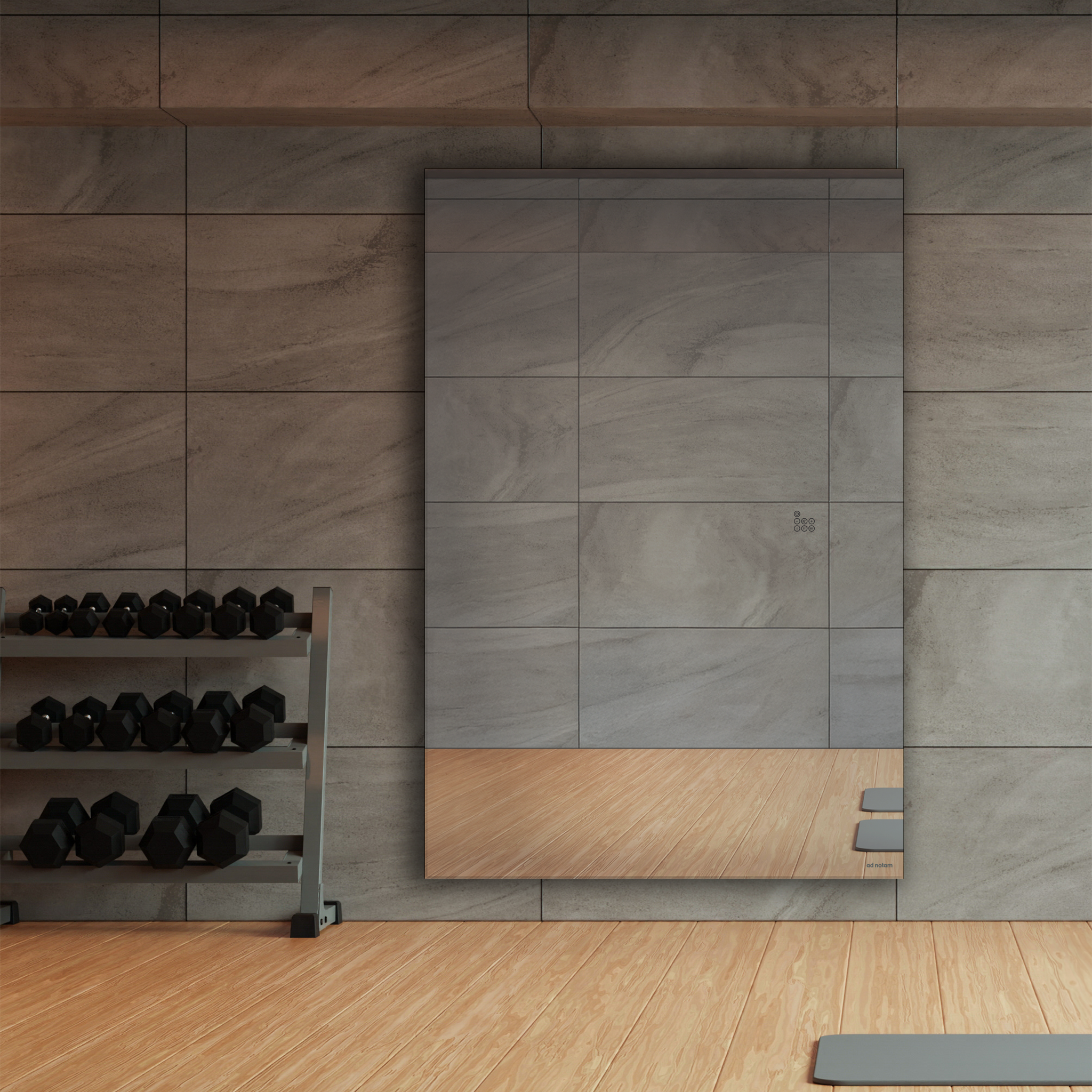

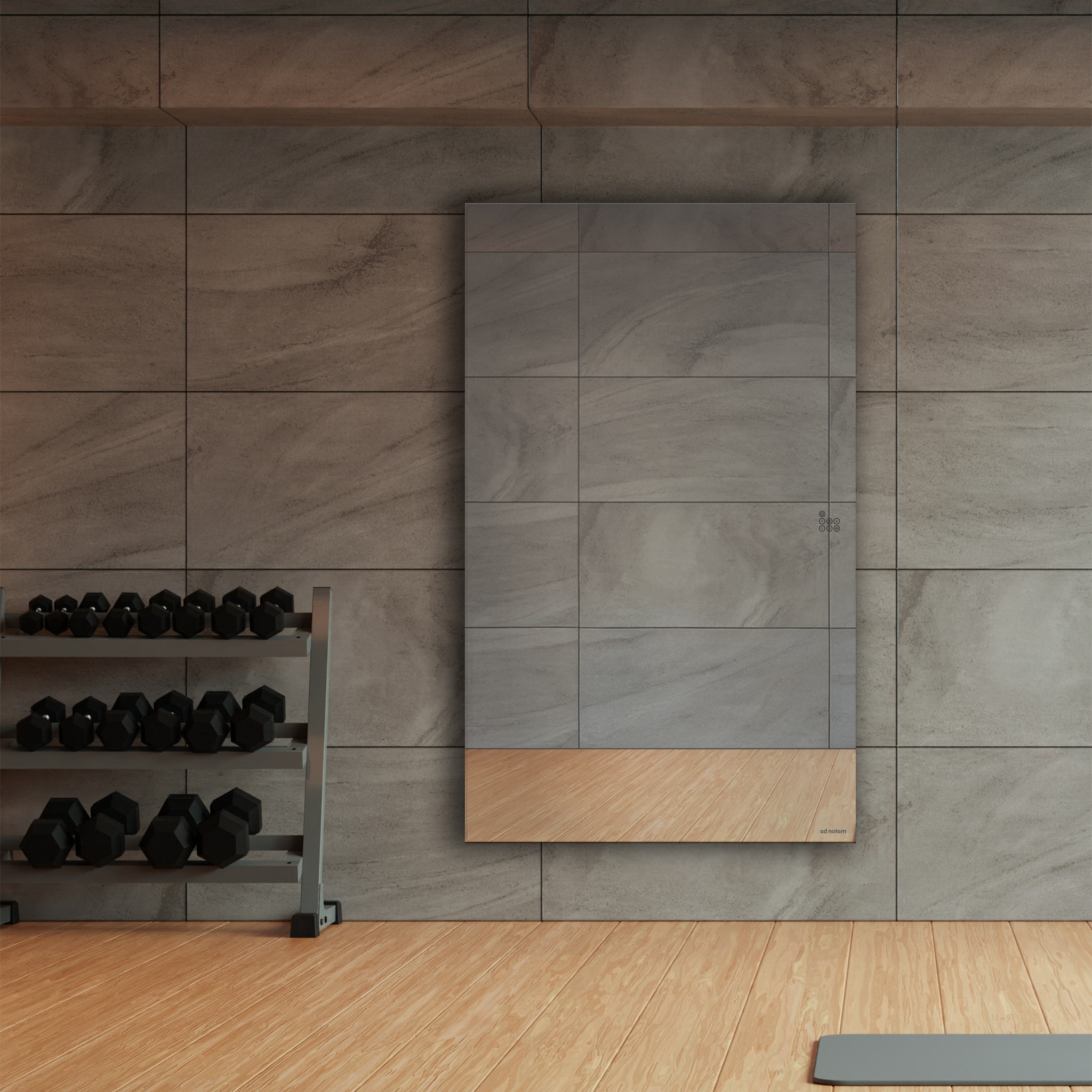

Switched OFF
... completely homogenous mirror
2in1 Picture Orientations
This feature allows the display to switch between portrait and landscape screen orientation.
Switch between vertical ...

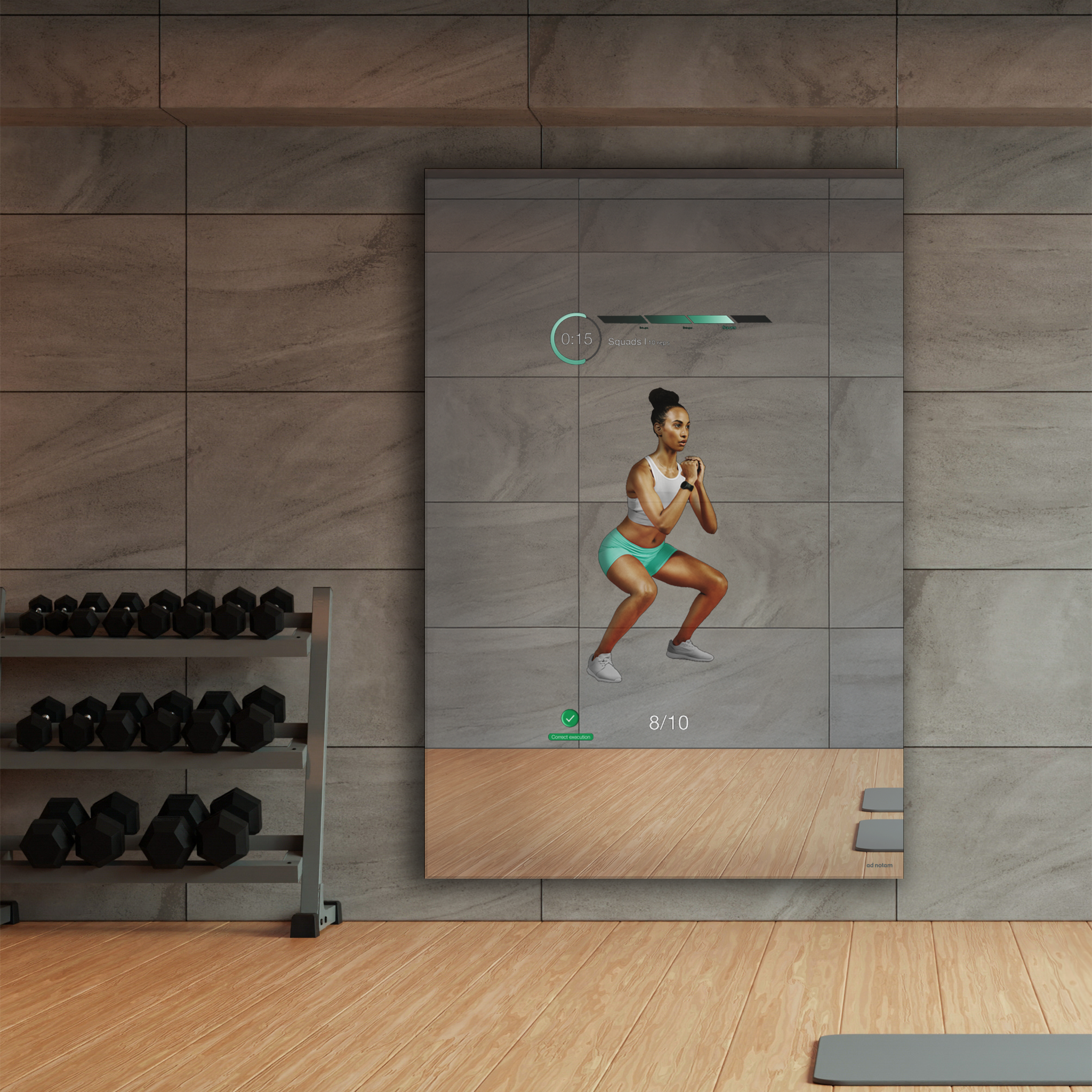

Portrait Screen
This spectactular ad notam feature can be particulary important, if you wish to use the same display for applications, which require different screen orientations.
Just change the orientation of the display at the touch of your fingers using the elegant in-mirror touch key.

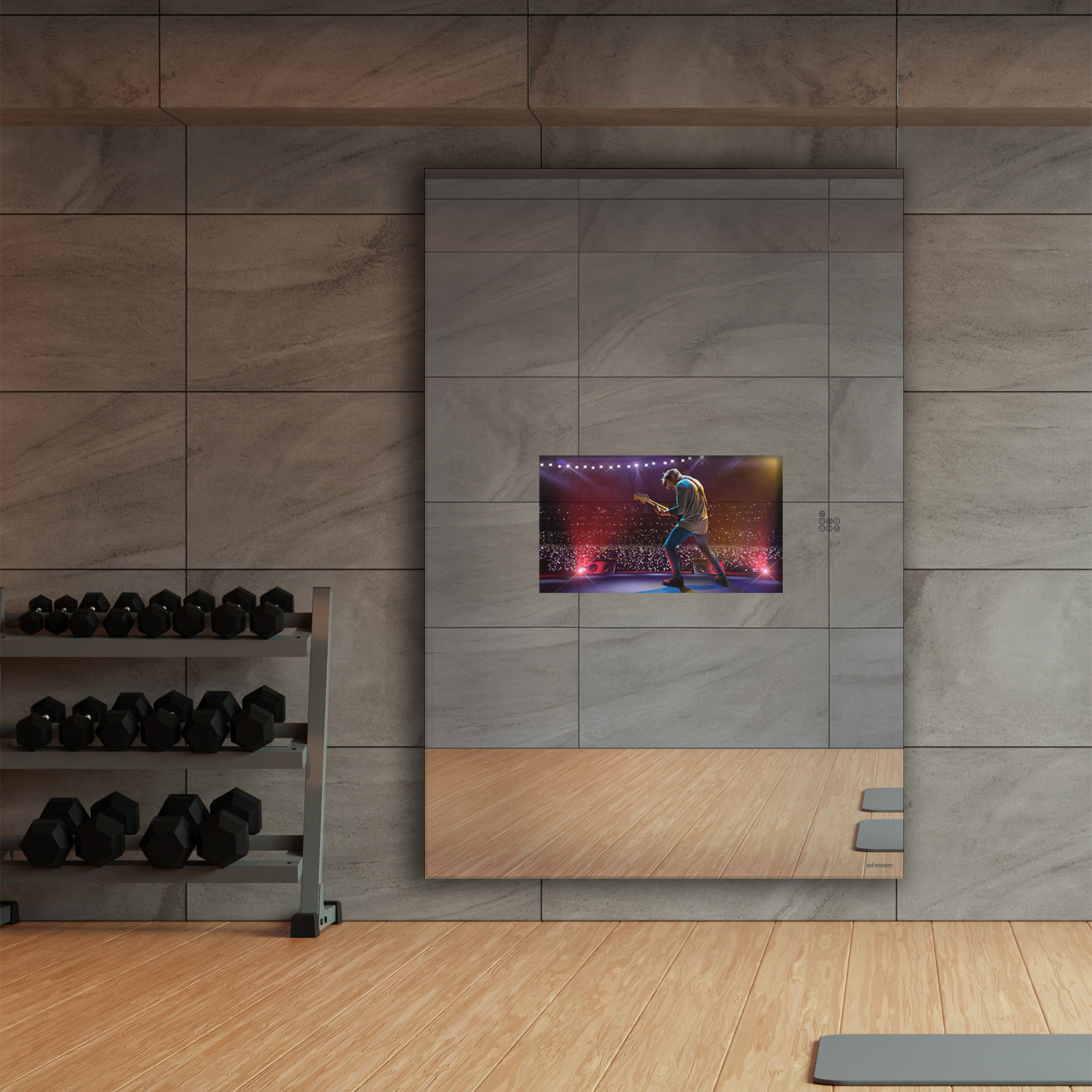

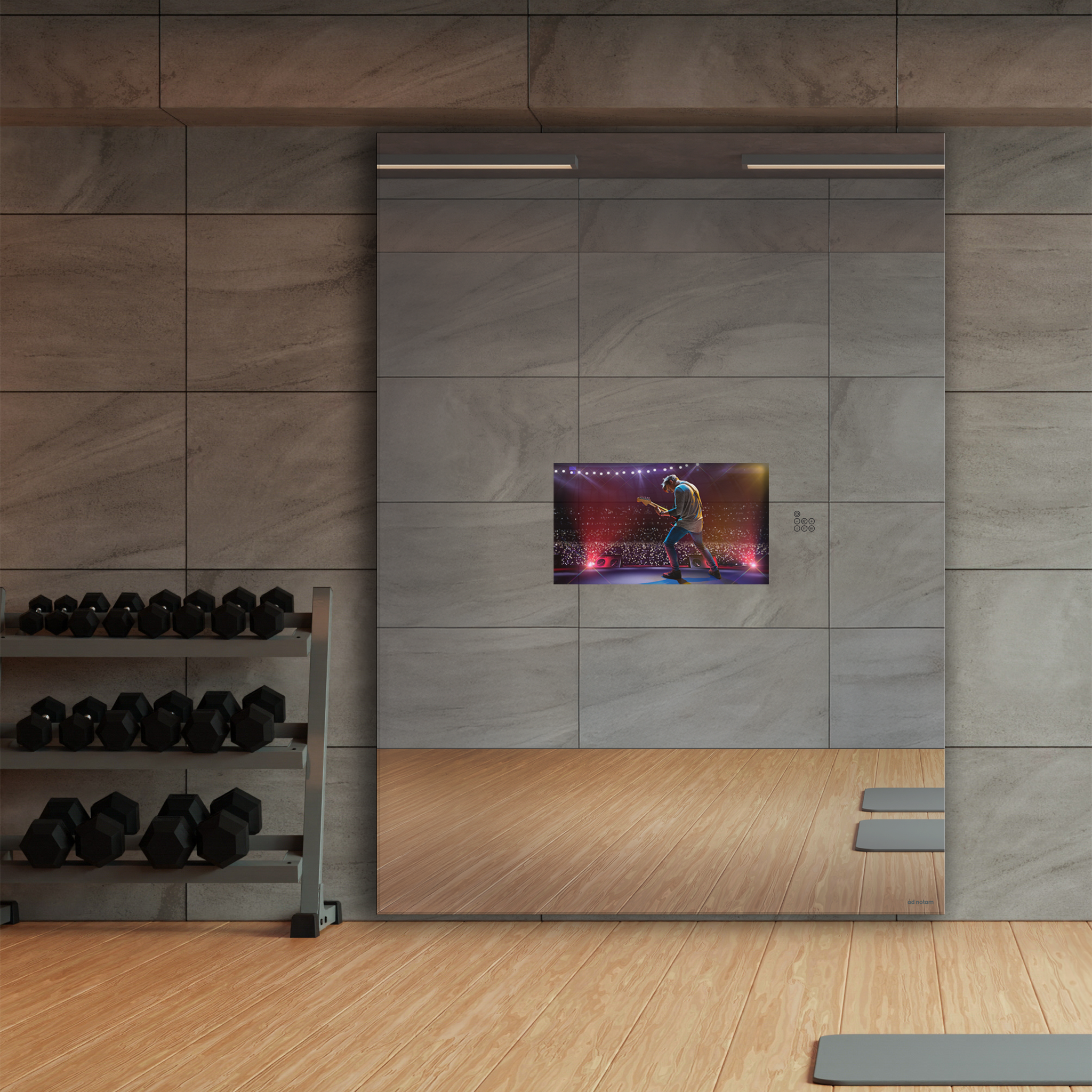

... and horizontal display

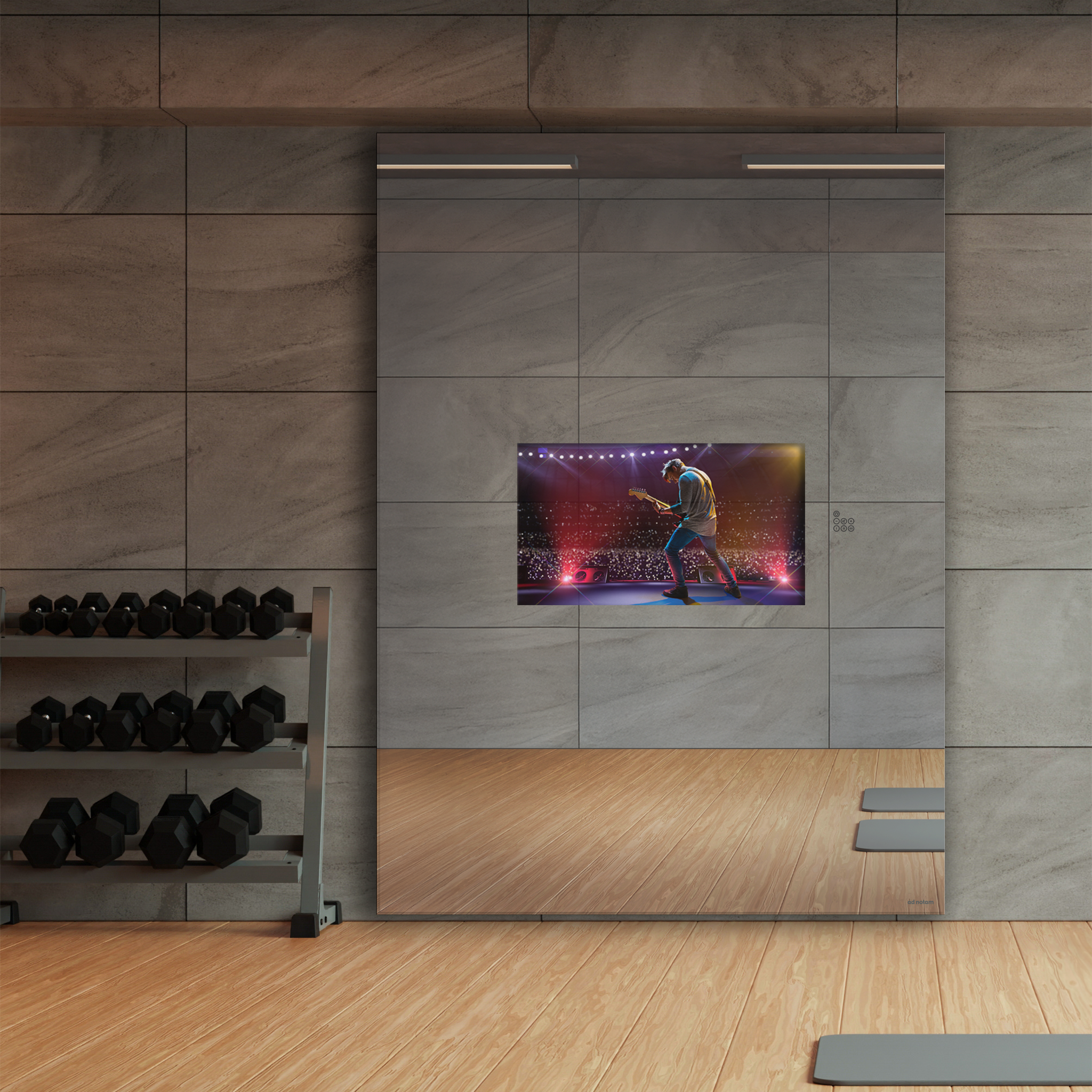

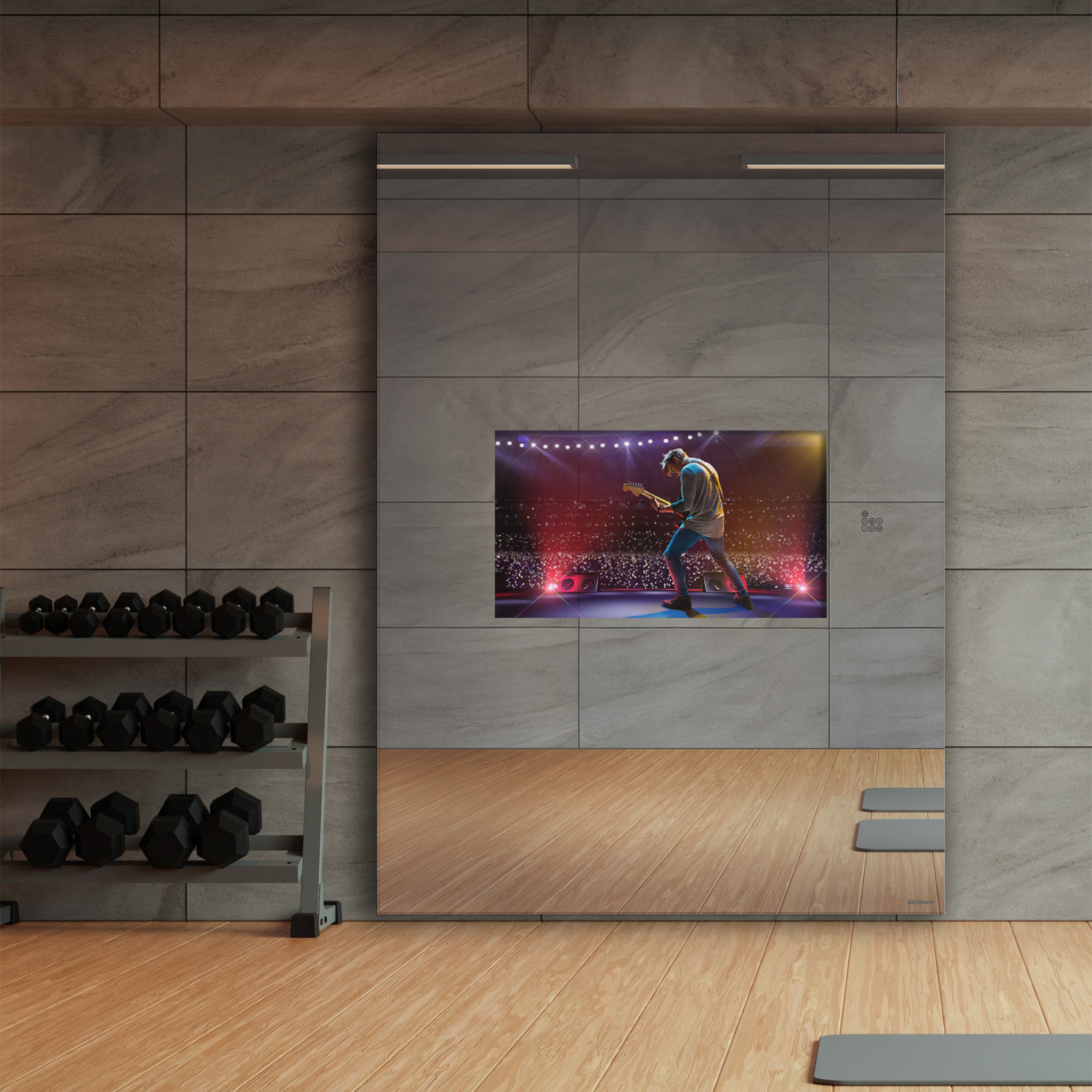

Landscape Screen
Use the device for fitness workouts in portrait format and watch TV in landscape format.
And the best of all: when the display is turned off, it is completely invisible and your room just remains with a homogenous mirror surface.
Fitness Program
Choose from over 50 different workouts including cardio & HIIT, yoga & pilates, core, mobility & recovery, stretching, foam rolling; trigger point & myofascial release, relaxation & meditation. The range of workouts available vary according to intensity, targeted muscles/body part and equipment necessary.
50+ Workouts
Various Ranges

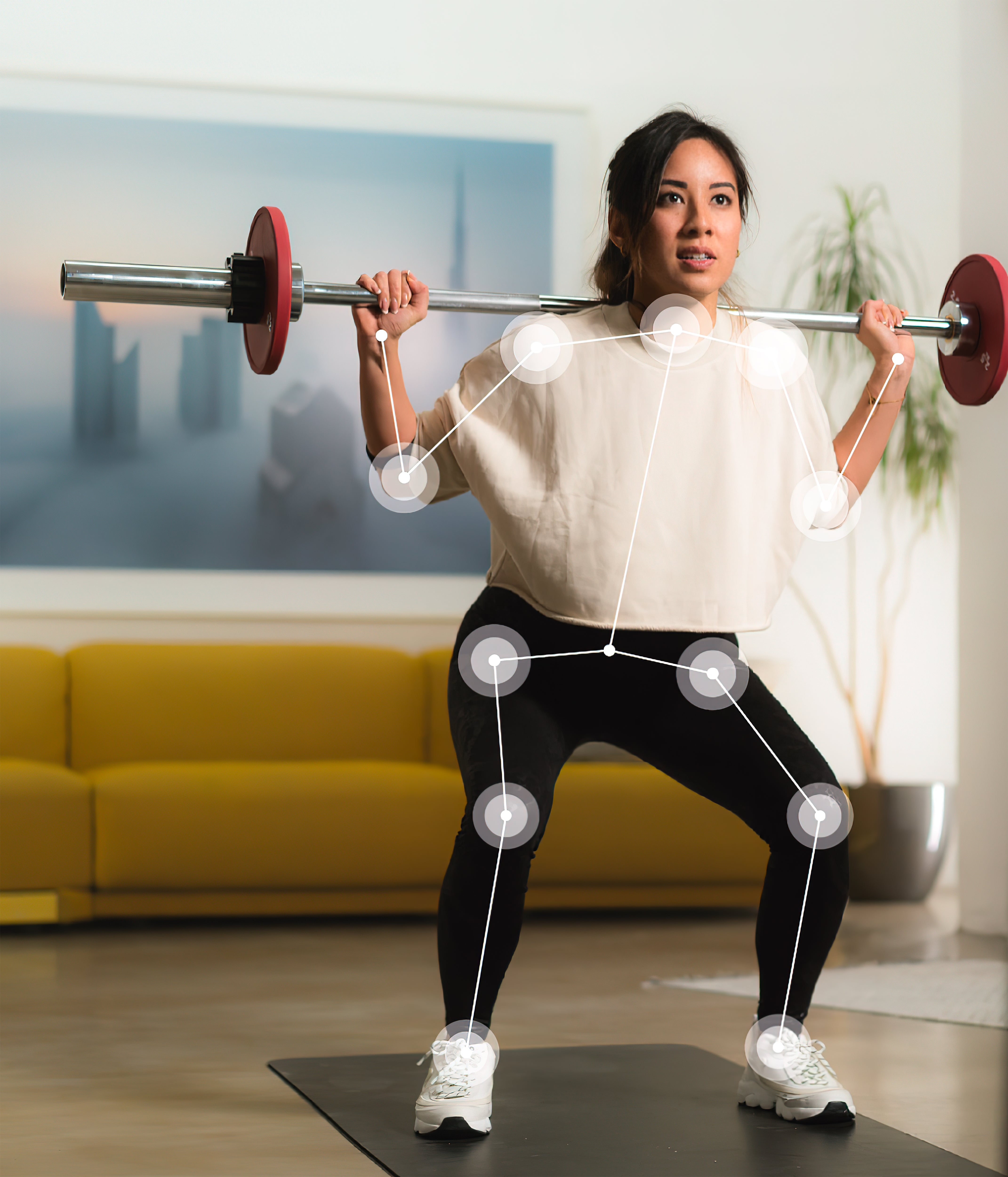

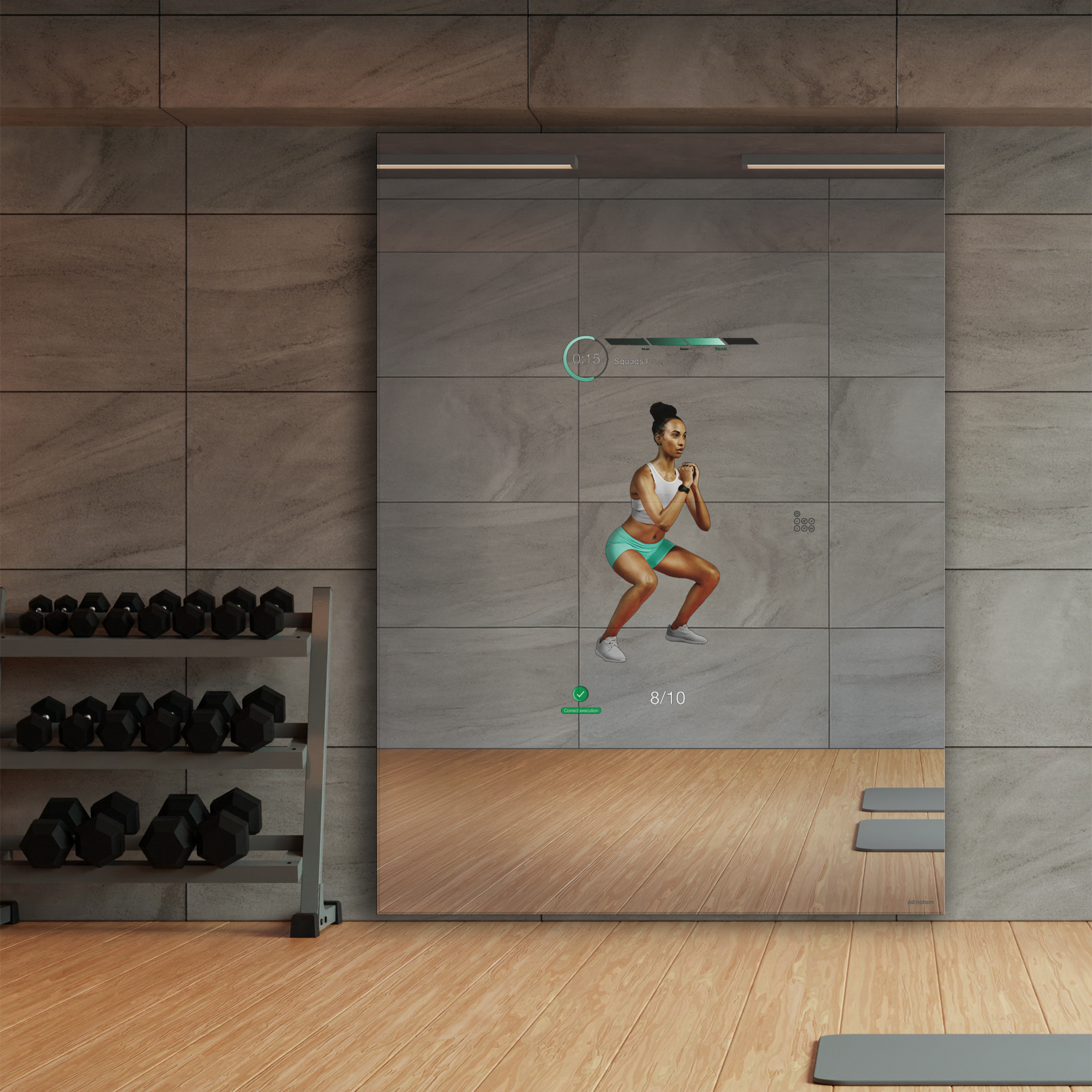

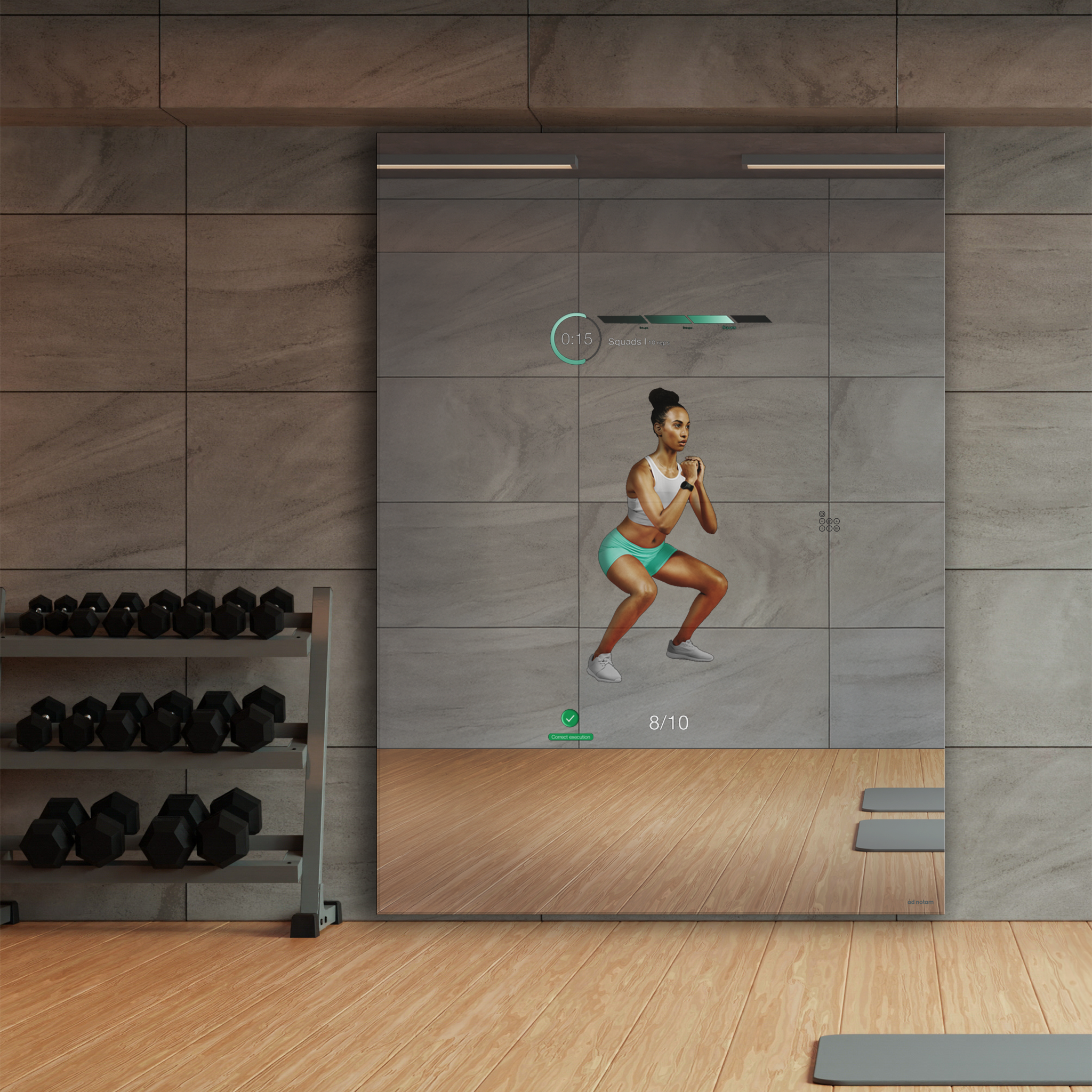

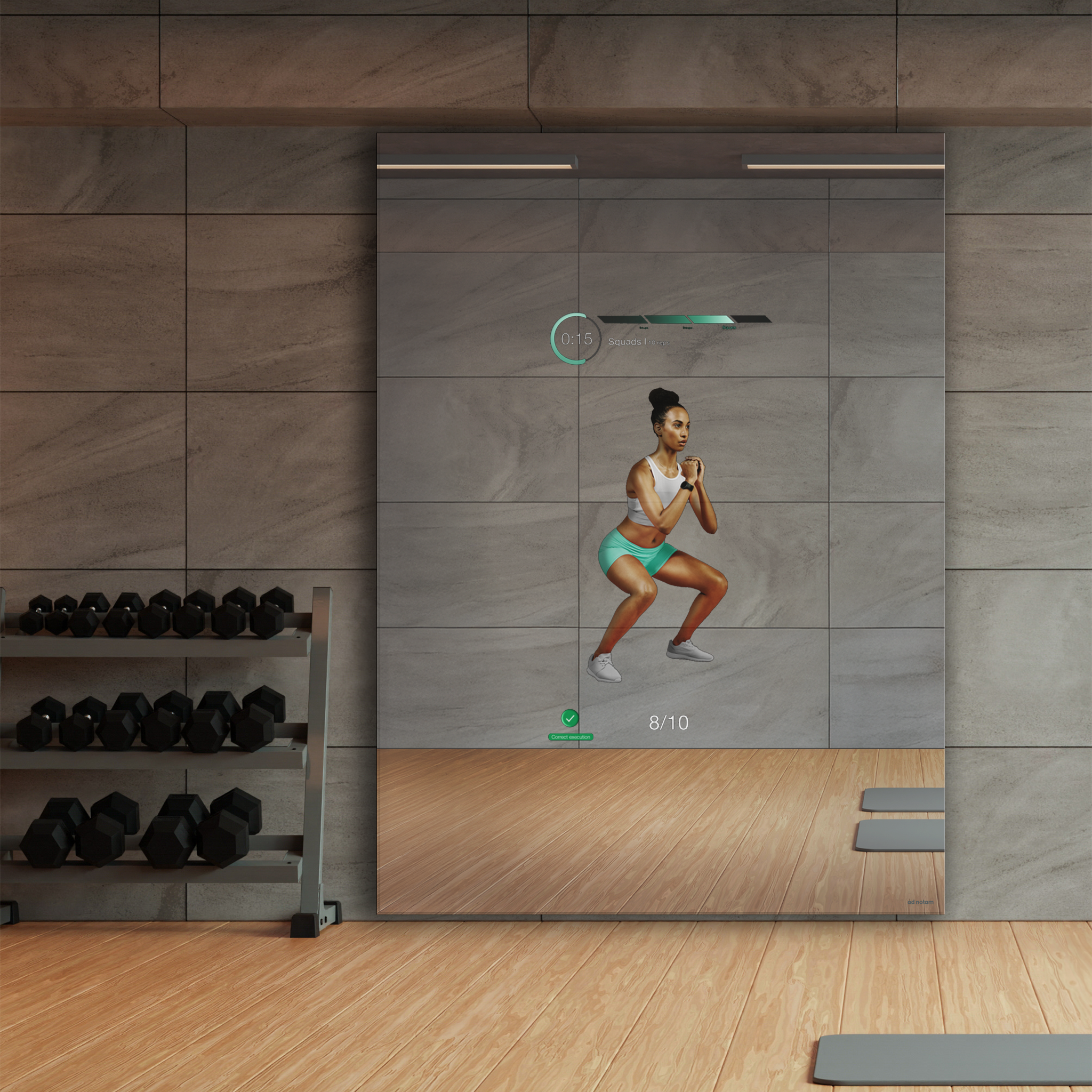

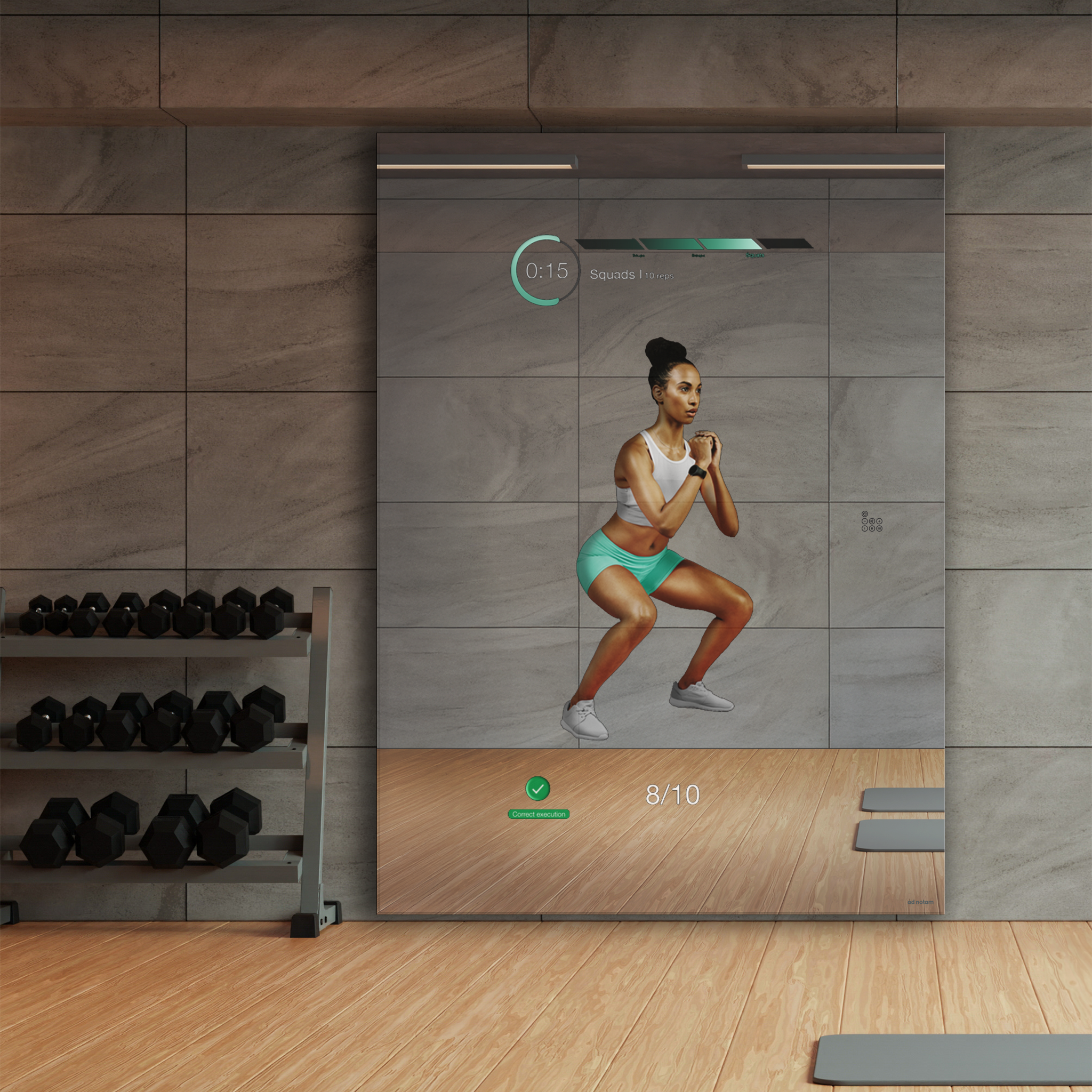

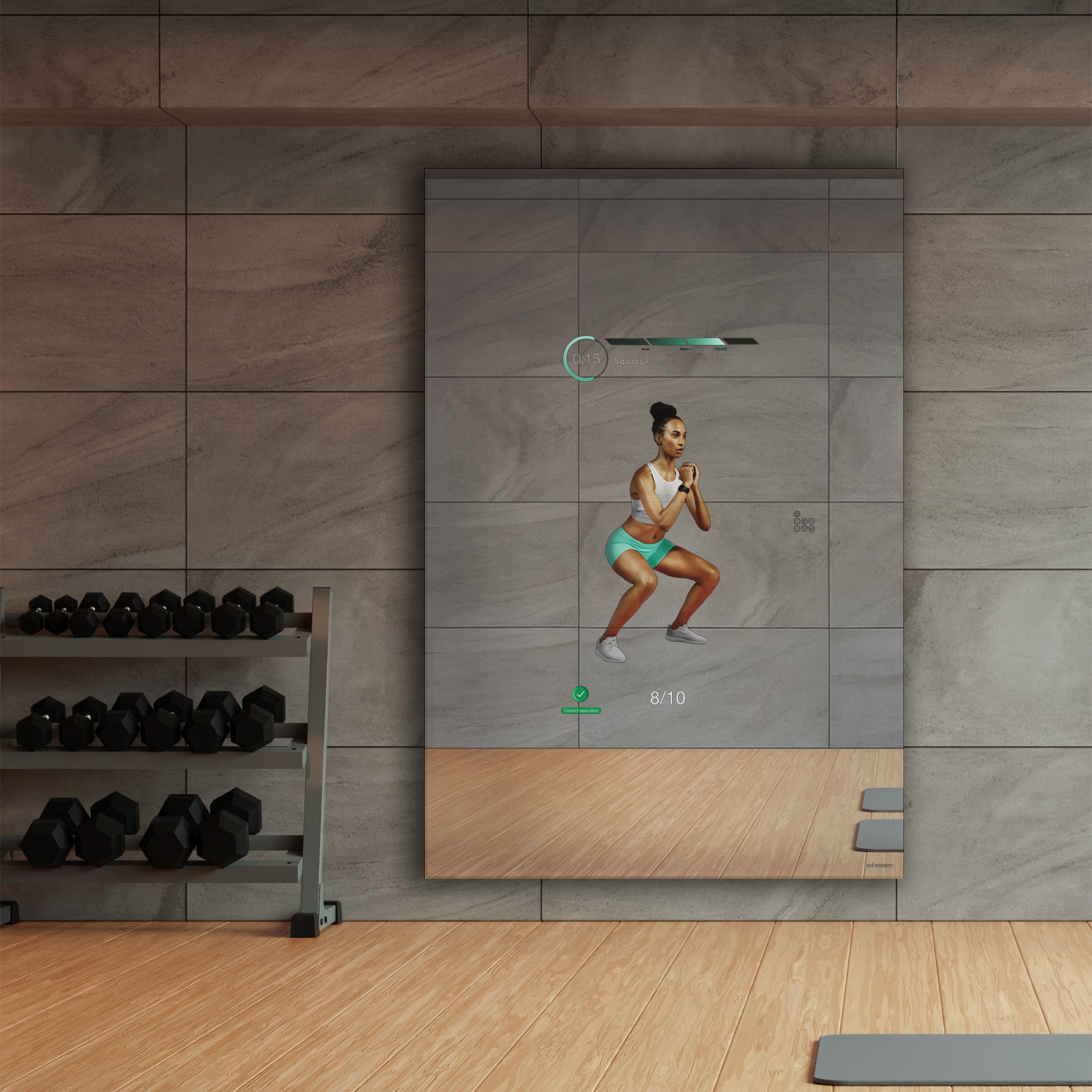

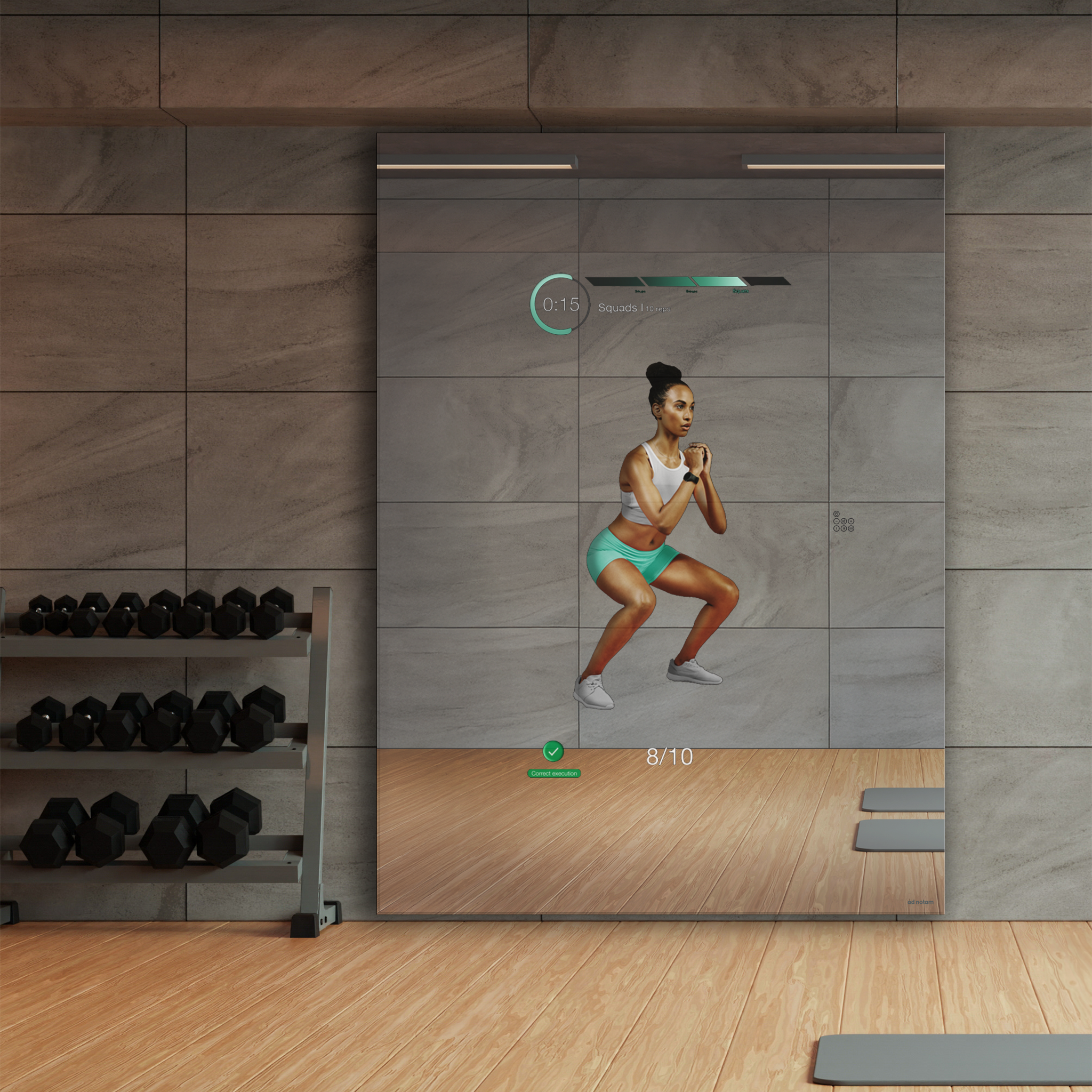

Motion Tracking
The product can be equipped with a unique motion tracking technology. So along with the trainer’s prompts and cues, you’ll also get additional feedback as the motion tracking camera counts your repetitions and tells you if your form is correct and on point.
The proprietary AI tracks your movements using 16 datapoints on your body.
Mobile App Control
There is no app download or registration required. Simply scan the QR code to start your workout.
Thanks to the convenient smart phone control, the mirror surface remains always free of finger prints.
Tech Specs
Mirror
Silver Magic Mirror
Thickness: 6 mm
Surface: Float
Tint: Silver
Reflection: 60 % +/- 5
Display area, when switched off: Invisible
Display
Screen Size: 49.0'' (1245 mm)
Portrait Orientation (Full Screen)
Visible Image Area: W 604 H 1074 mm (49.0'' diagonale)
Landscape Orientation (2in1 Upgrade)
Visible Image Area: W 604 H 340 mm (27.0'' diagonale)
Screen Size: 55.0'' (1397 mm)
Portrait Orientation (Full Screen)
Visible Image Area: W 680 H 1209 mm (55.0'' diagonale)
Landscape Orientation (2in1 Upgrade)
Visible Image Area: W 680 H 382 mm (30.0'' diagonale)
Screen Size: 65.0'' (1639 mm)
Portrait Orientation (Full Screen)
Visible Image Area: W 803 H 1428 mm (65.0'' diagonale)
Landscape Orientation (2in1 Upgrade)
Visible Image Area: W 803 H 401 mm (35.0'' diagonale)
Screen Size: 75.0'' (1892 mm)
Portrait Orientation (Full Screen)
Visible Image Area: W 928 H 1650 mm (75.0'' diagonale)
Landscape Orientation (2in1 Upgrade)
Visible Image Area: W 928 H 522 mm (42.0'' diagonale)
Physical Resolution: 2160 x 3840
Picture Format: 9:16
Viewing Angle: Horizontal: Typical (Total) 178° Vertical: Typical (Total) 178°
Brightness: min. 900cd/m²
Connectivity
Video Inputs
Component: 3x RCA terminal, green (Y), blue (Pb), red (Pr)
Supported resolutions: 720p, 1080i, 1080p
HDMI 2.0: 3x HDMI terminal
Supported resolutions: 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p, UHD
Audio Inputs
Line Audio Input: 2x RCA terminal, white (L), red (R)
Other Inputs
USB: 1x USB terminal
RS 232: 1x D-SUB 9 pin male terminal
IR Input (Infrared): 1x Mini Jack 3.5 mm
DC Input: 1x DC Power Jack 2.1 mm
Audio Outputs
Speaker Output: 1x Phoenix Clip 4pin 2x 8W RMS @ 8 Ohms per channel
Line Audio Output: 1x Mini Jack 3.5 mm
Other Outputs
IR Output (Cable): 1x Mini Jack 3.5 mm
IR Output (LED): 1x Mini Jack 2.5 mm
DC Output 5V/12V: 1x Mini Jack 3.5 mm / max. 2.0A only one active voltage
USB Media Player
Audio: MP3, AAC, M4A, MP2
Picture: JPEG
Video: MPEG-4, H.264, AVI, MP4, MOV, DIVX
Document: DOC, PPT
OSD Languages
Deutsch, English, Español, Français, Italiano, Português, Chinese
PC System
Processor: Intel® Celeron® J4125 (Frequency: 2.0 - 2.7GHz)
Wireless: Wi-Fi 802.11 a/b/g/n/ac @ 2.4/5 GHz HT160
Operating temperature: 0°C~75°C
Power: DC Jack 5.5/2.1mm or Type-C PD; DC Jack input: 12-19V DC; Type-C input: 15V DC
Operating System (OS): Linux
Motion Tracking
Sensor: Intel RealSense Depth Camera D435
Placement: Integrated into mirror surface
Image sensor technology: Global Shutter
Depth technology: Stereoscopic
Depth Field of View (FOV): 87° × 58°
Sound
Type: Invisible surface speaker, Stereo
Rated power: each 50W
Impedance: 8 Ohm
Sensitivity: 85 dB
Frequency Response: 60 - 20000 Hz
FAQs
How do I clean the product?
To avoid damages please ensure the observance of the following instructions:
• Use mild, fast-drying household spray glass cleaning solutions with ammonia and water. Ammonia concentration not to exceed 1.5% of weight.
• Use a lint-free paper cloth that is non abrasive or a soft cotton cloth without seams, buttons, plastic or metal parts.
• Pre-moisten glass surface with water or cleaning solution to loosen dried dirt and debris before attempting to wipe it away - never scrape with a metal blade or tool
• Never use abrasive household detergents as cleaning agents.
• Never attempt to remove debris /dirt from the glass by using a scraper or razor blade.
• Never trap abrasive particles between the cloth and the glass surface while wiping away the cleaning solution.
Is it easy to install the product?
For ad notam it is very important that our products can be installed easily and safely. For this reason, in contrast to other industry providers, we always supply a mounting template for surface-mounted installations. This ensures that all wall brackets are in the correct position and the installation is completed within a short time.
Does the product come with integrated loudspeakers?
Yes, the product is equipped with invisible surface loudspeakers.
Is the TV screen completely invisible when switched off?
Yes, our mirror delivers the highest standard of picture quality when turned on, while when turned off, the screen area completely disappears, leaving your mirror as an elegant fixture in your environment.
Can I connect external speakers to the product?
Yes, You can connect any speaker that it's impedance is 8 Ohm and can handle power of minimum 10 Watts.
