Ultra High Definition & Clarity
Immerse yourself in the details with our 4K UHD magnificent picture clarity that is four times the resolution of regular HD.
No Ventilation Needed
The ad notam screen requires no ventilation due to low voltage operation and external positioning of the power adaptor.
Low Voltage Safety Product
Rainscreen is a low voltage products (DC 24V) and therfore safe for operation in bathroom environment. All of our displays are equipped with external power supply. This facilitates service & regulates heat sync.
Performant High Brightness
Our high brightness technology allows the image to shine through the glass without picture degradation and with minimal glare. Our superb quality displays provide our customers with crisp, legible content delivery in various ambient lighting conditions.

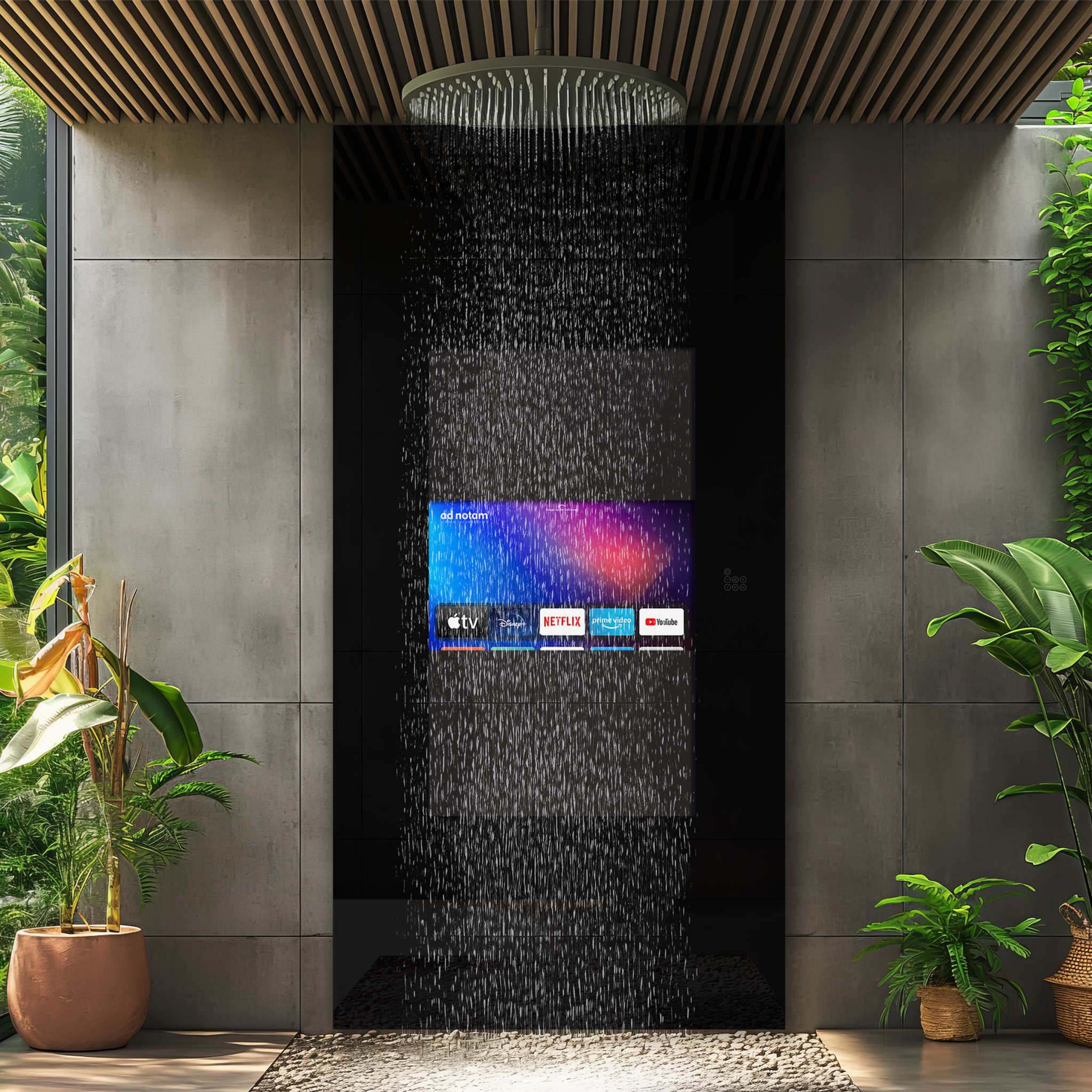

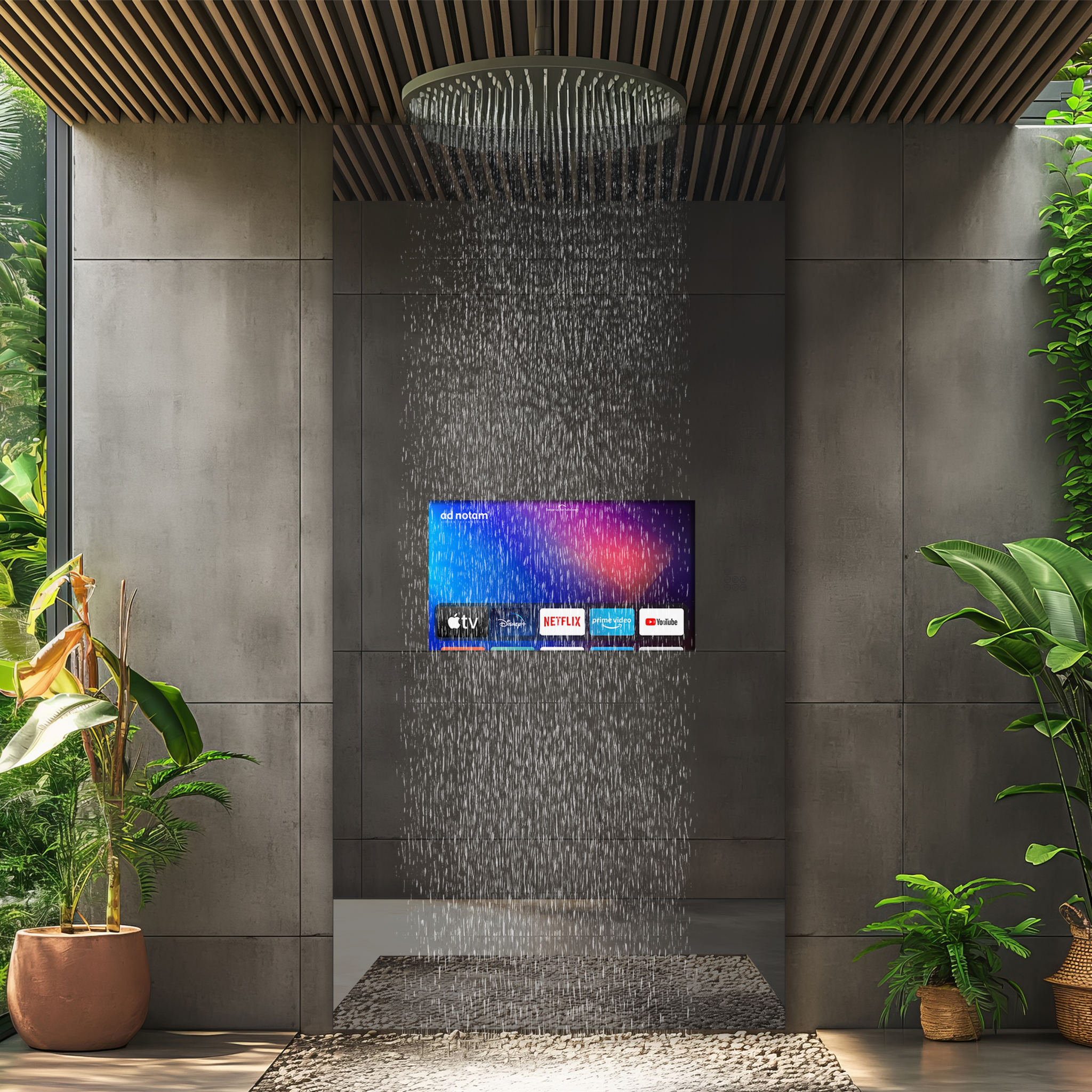

2in1 Picture Orientations
This feature allows the display to switch between portrait and landscape screen orientation.

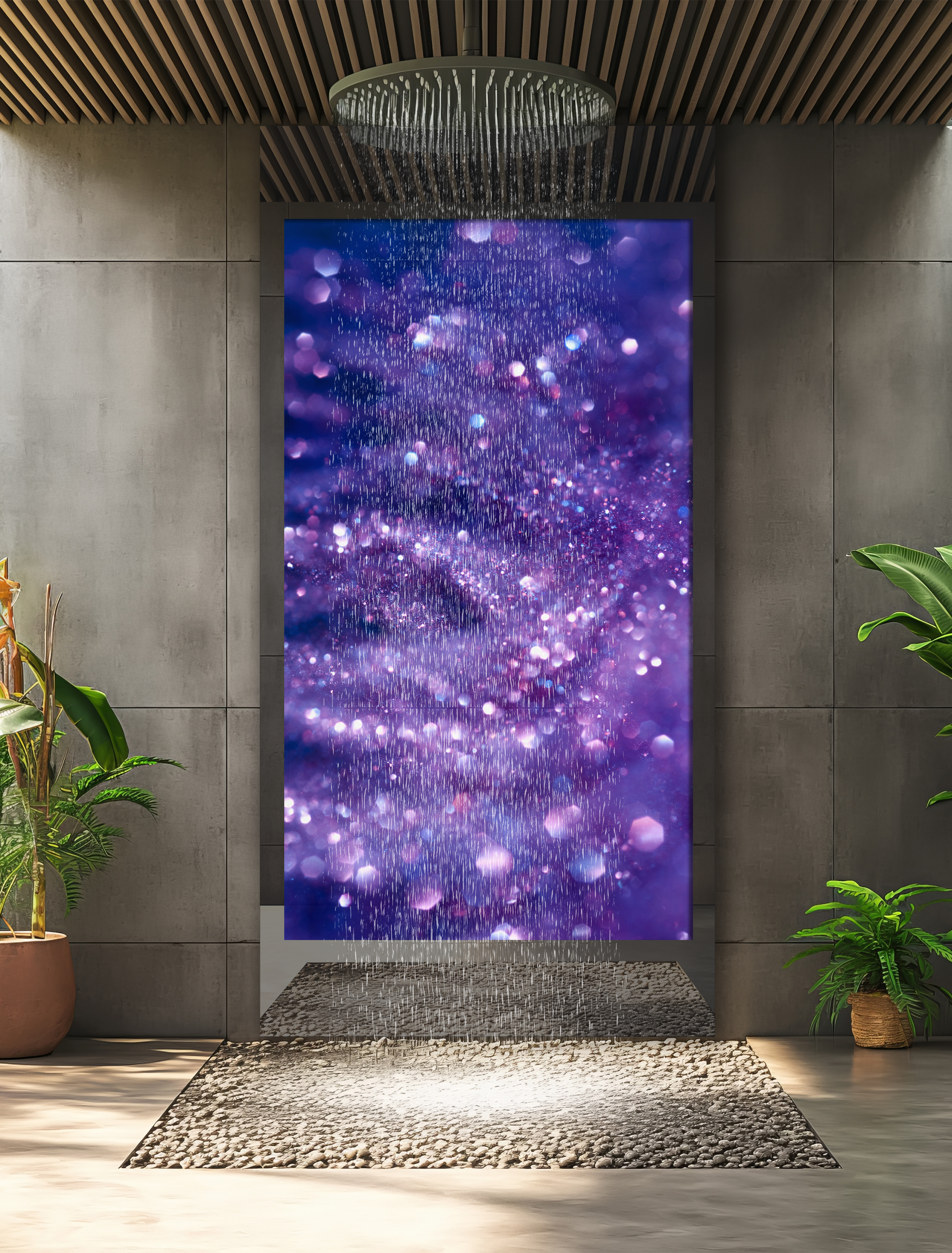

Switch between vertical ...
Portrait Screen
This spectactular ad notam feature can be particulary important, if you wish to use the same display for applications, which require different screen orientations.
Just change the orientation of the display at the touch of your fingers using the elegant in-mirror touch key.

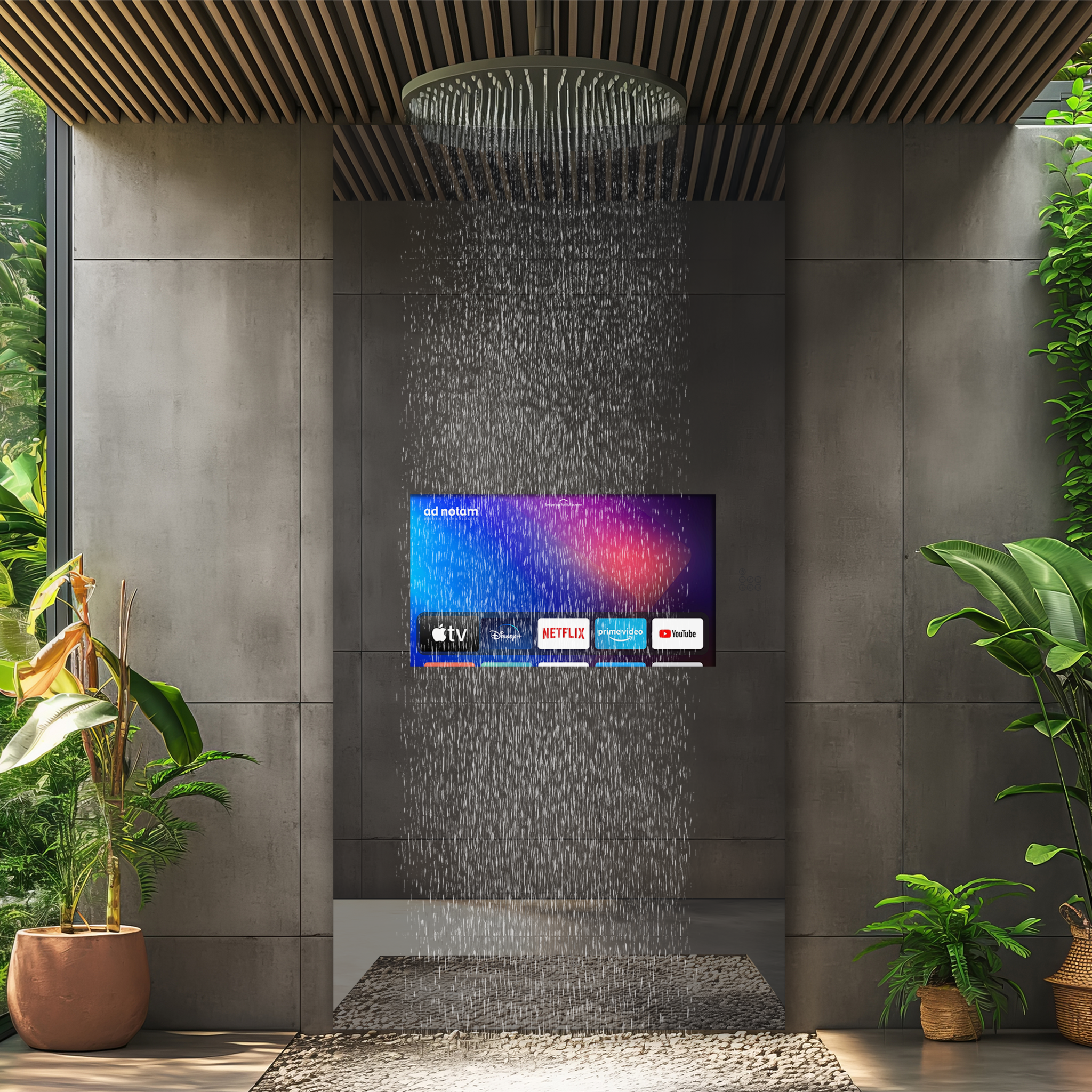

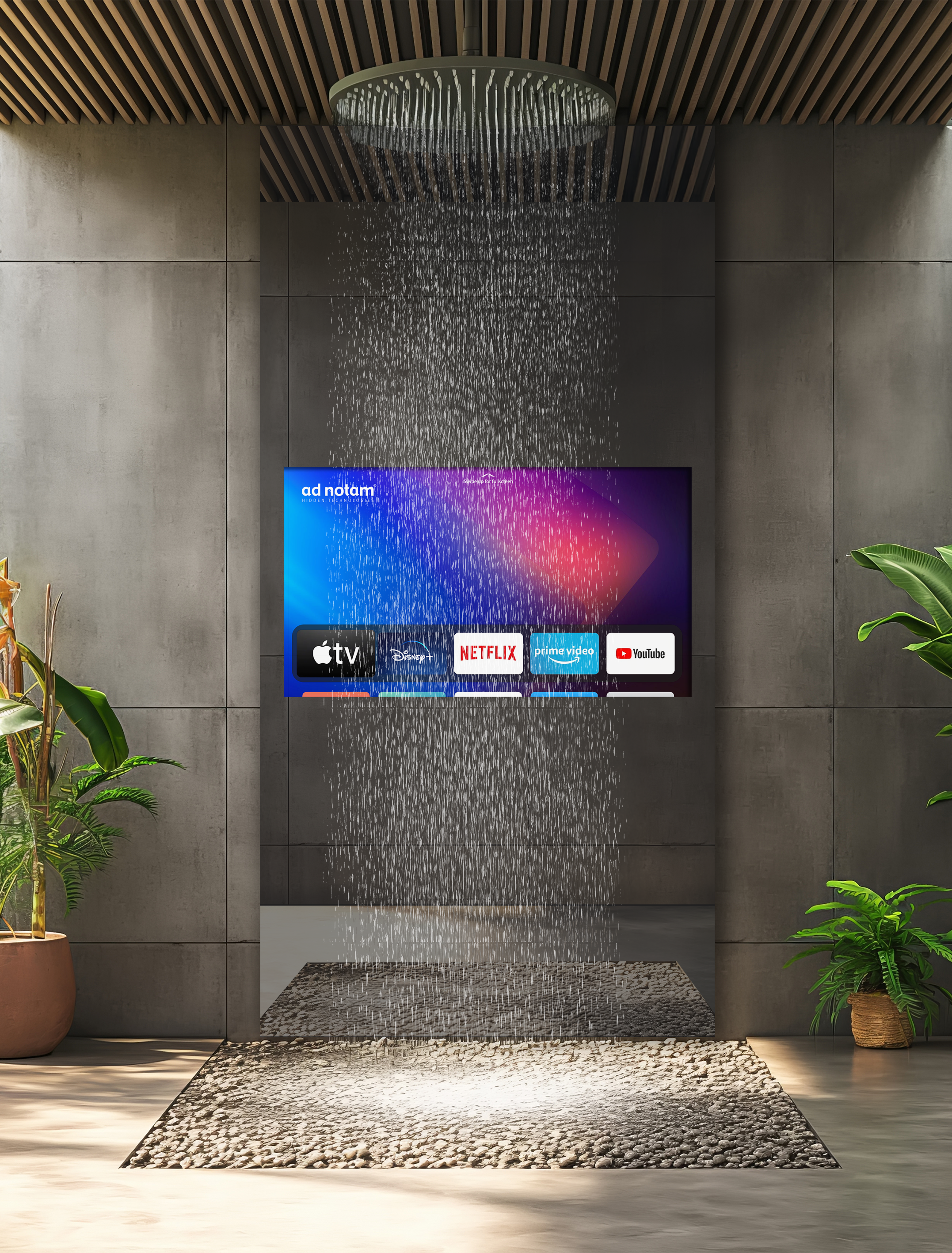

... and horizontal display

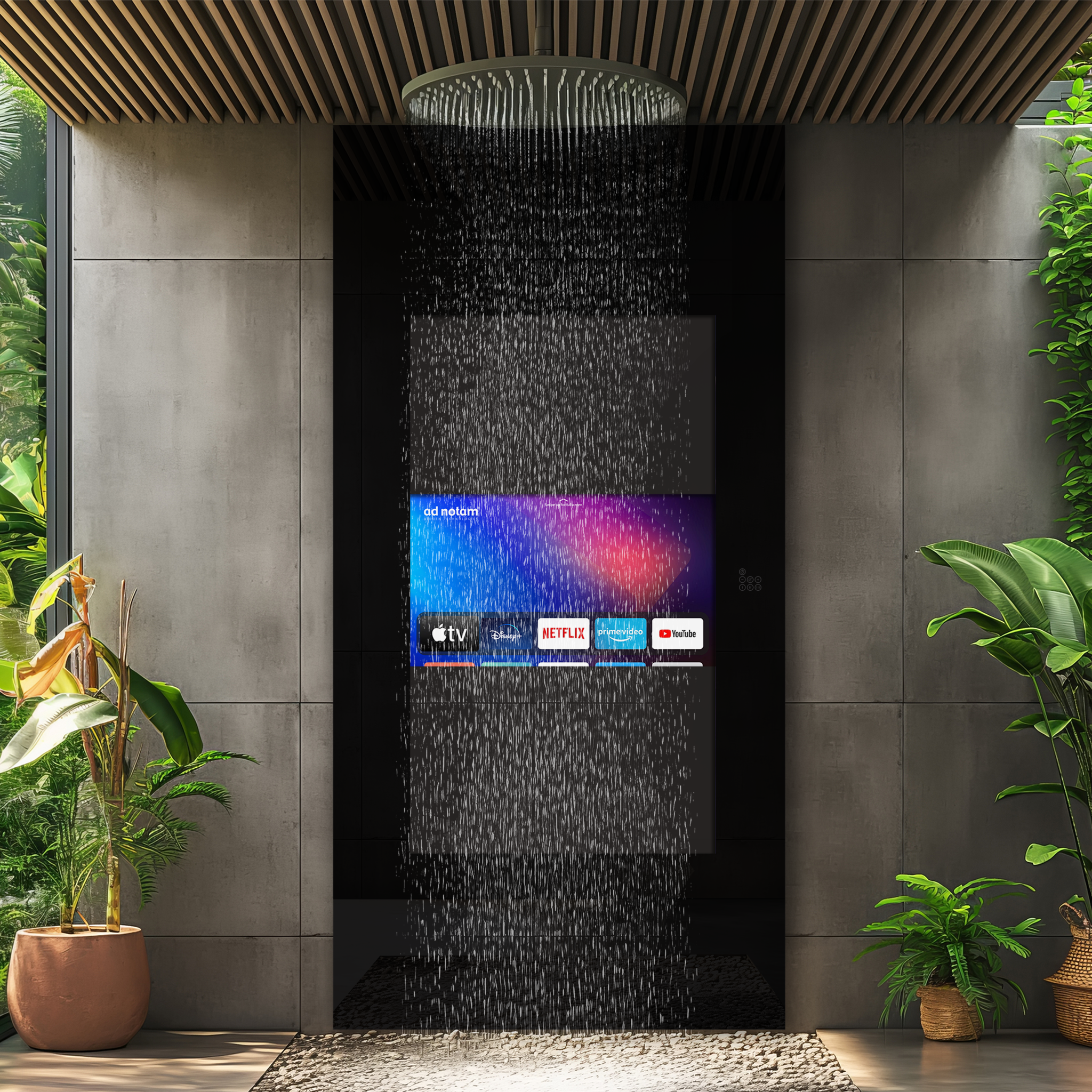

Landscape Screen
Use the device for RainTunes shower system in portrait format and watch TV in landscape format.
And the best of all: With our Magic Black Glass the display is completely invisible when turned off and your room just remains with a homogenous black glass surface.

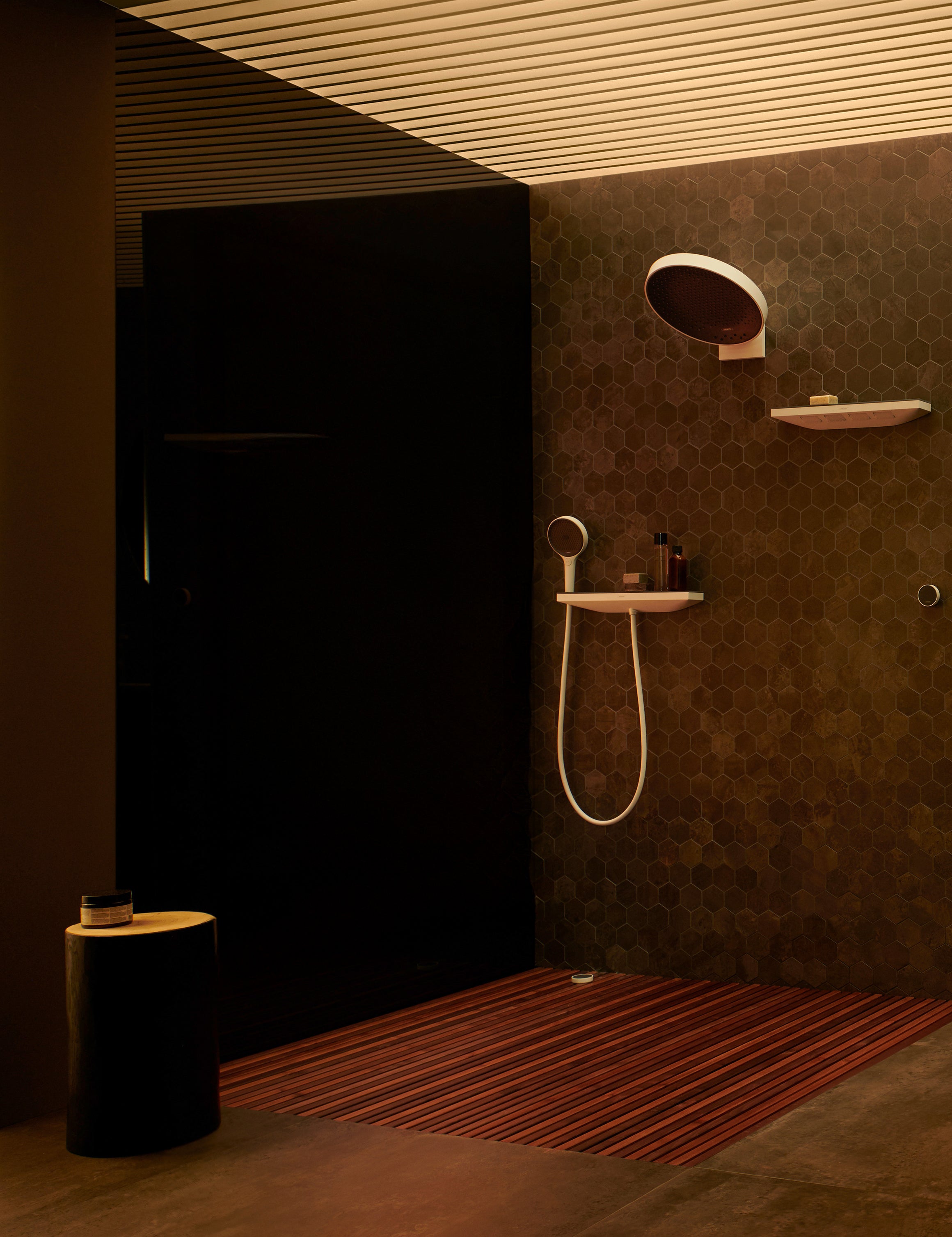

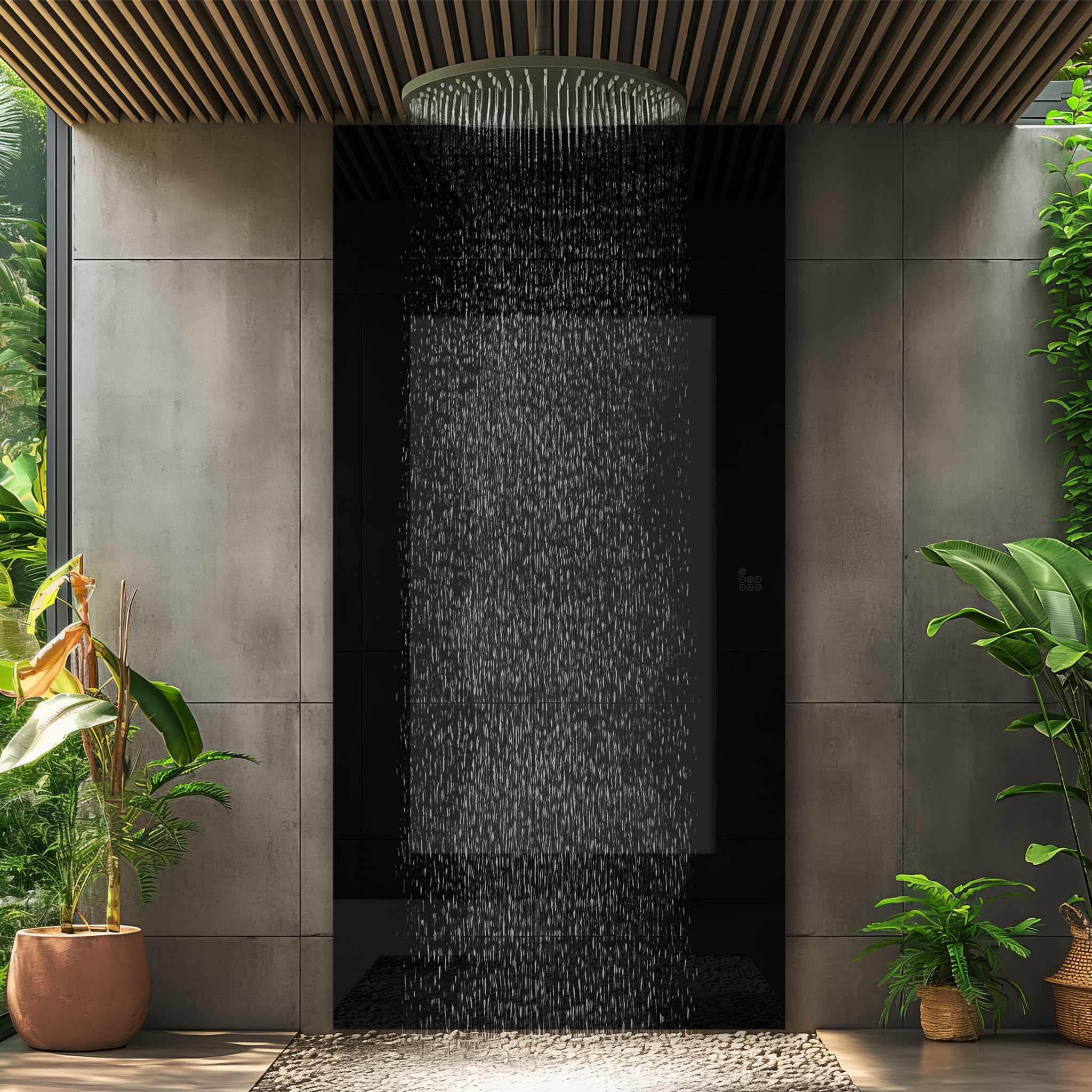

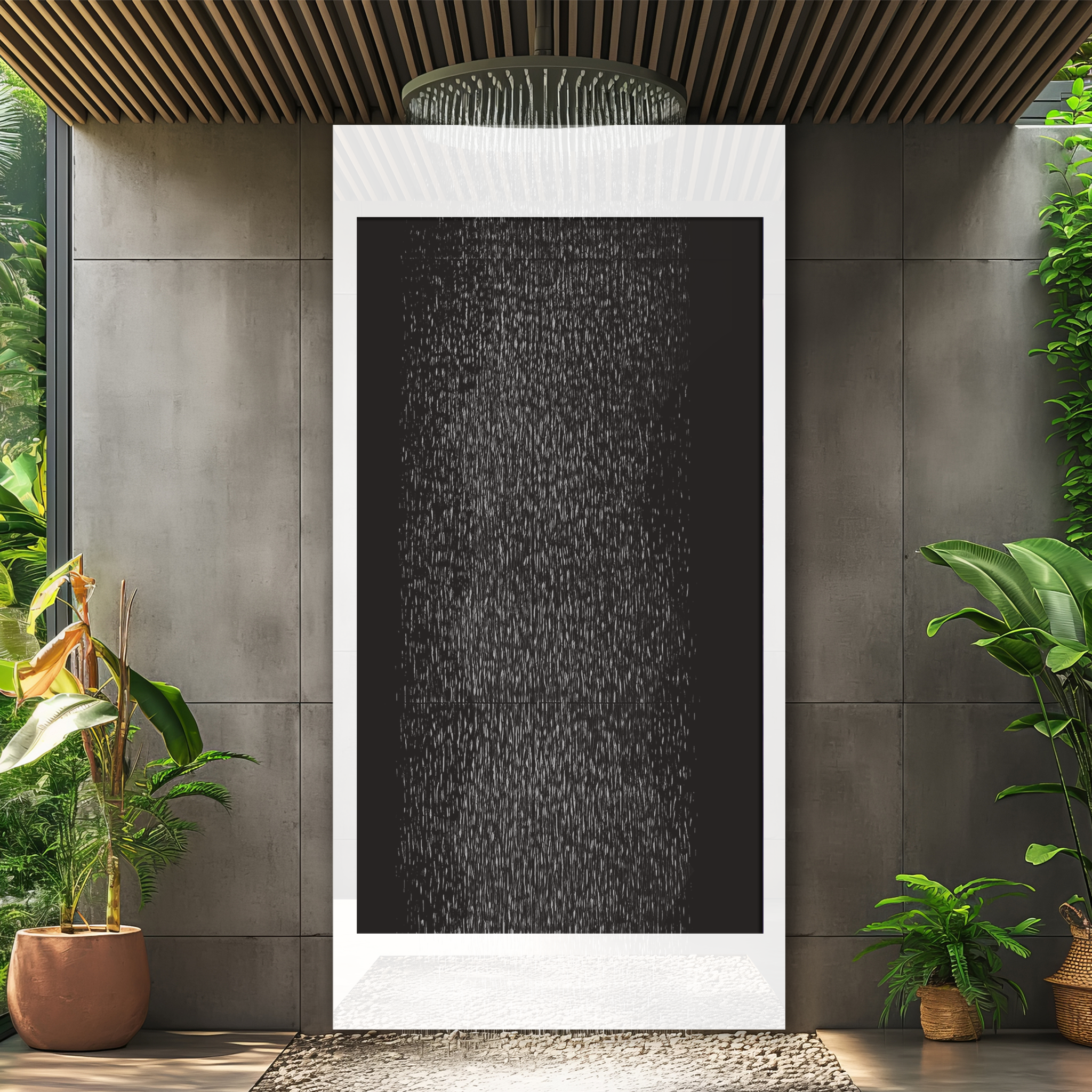

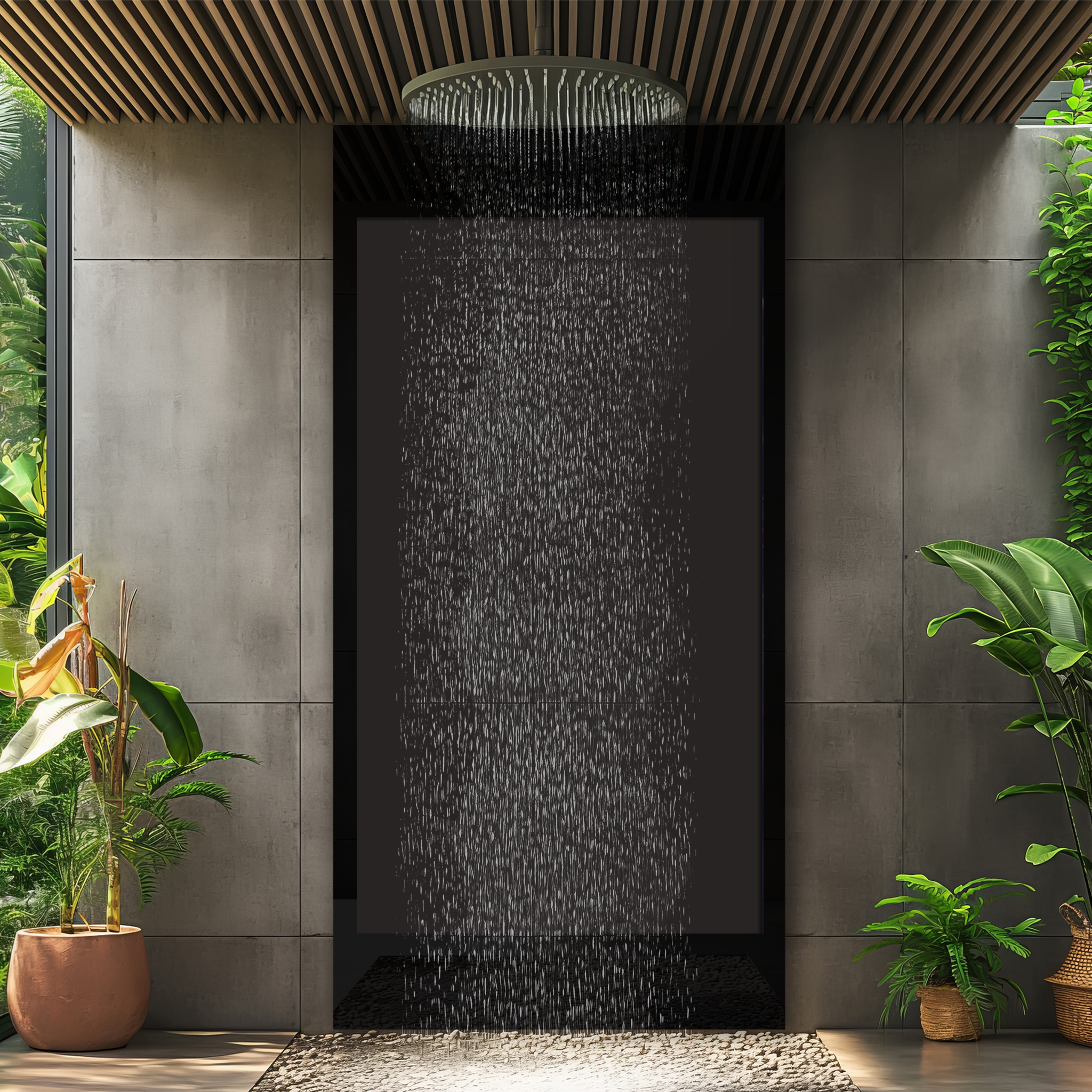

Switched Off
Magic Black Glass
TOTALLY INVISIBLE, BLACK
GLASS WITH GOOD PICTURE QUALITY.
Allows the image area of the screen to appear in the “ON” position and completely vanish when turned “OFF”.
Due to the tinted look, the brightness of the screen is minimally affected.

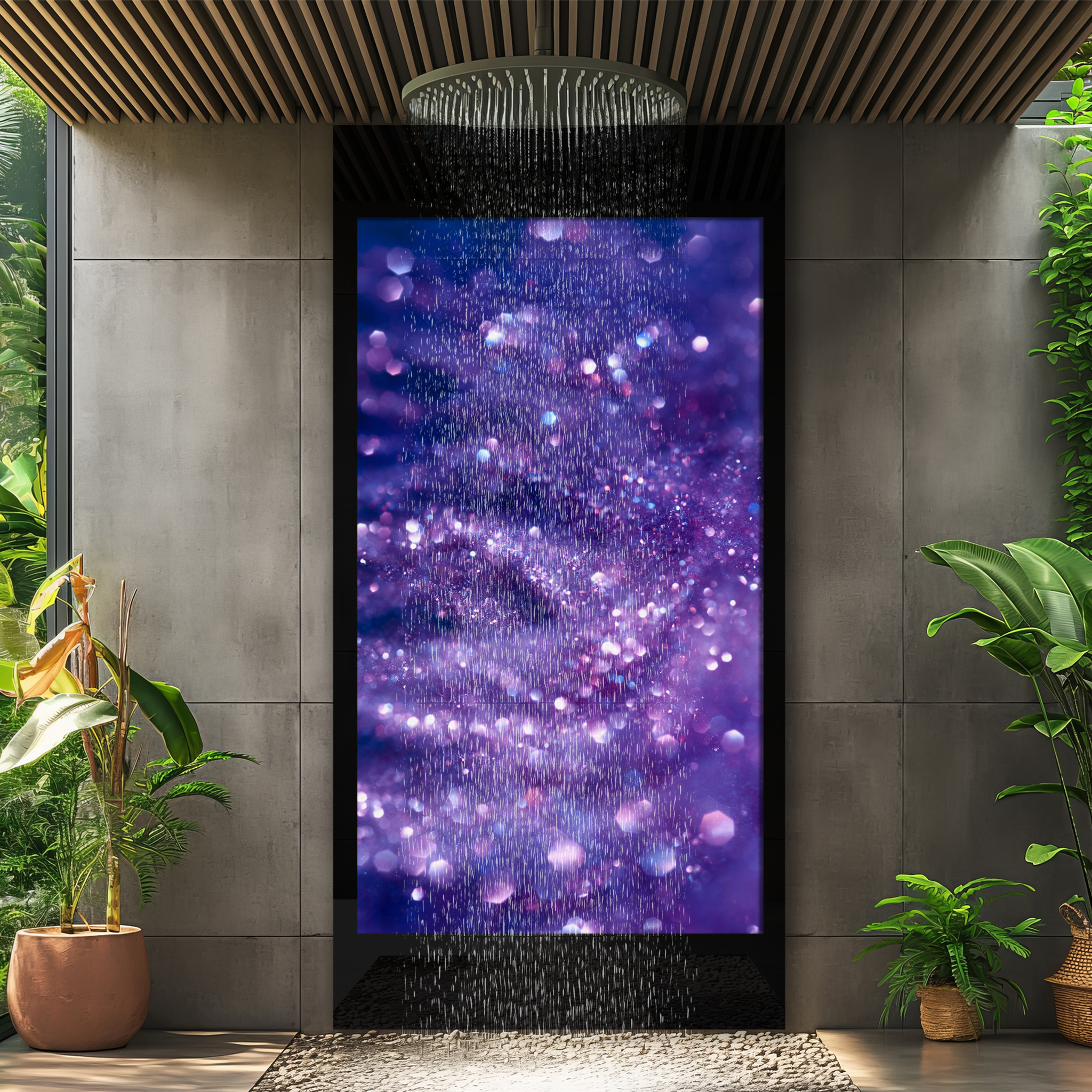

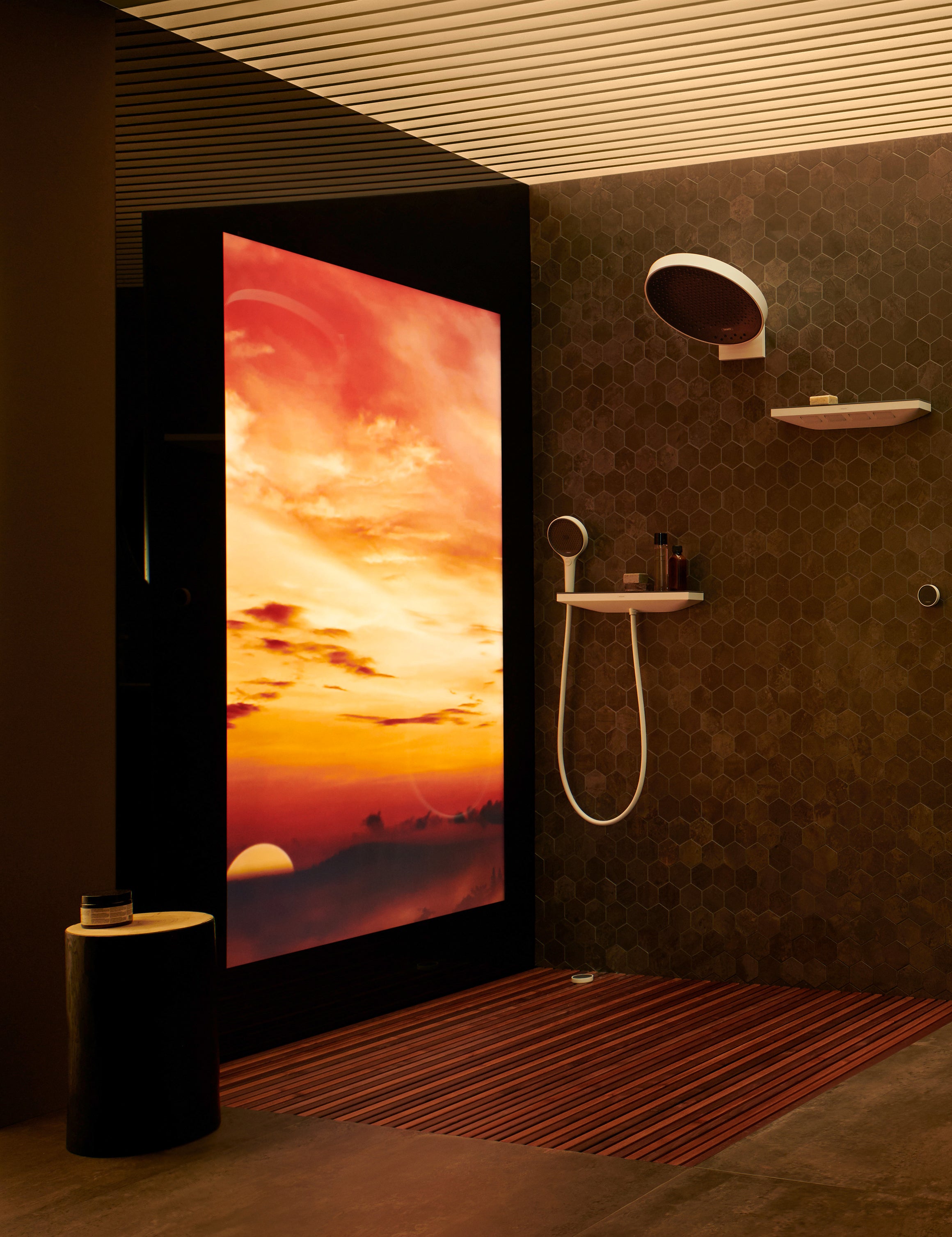

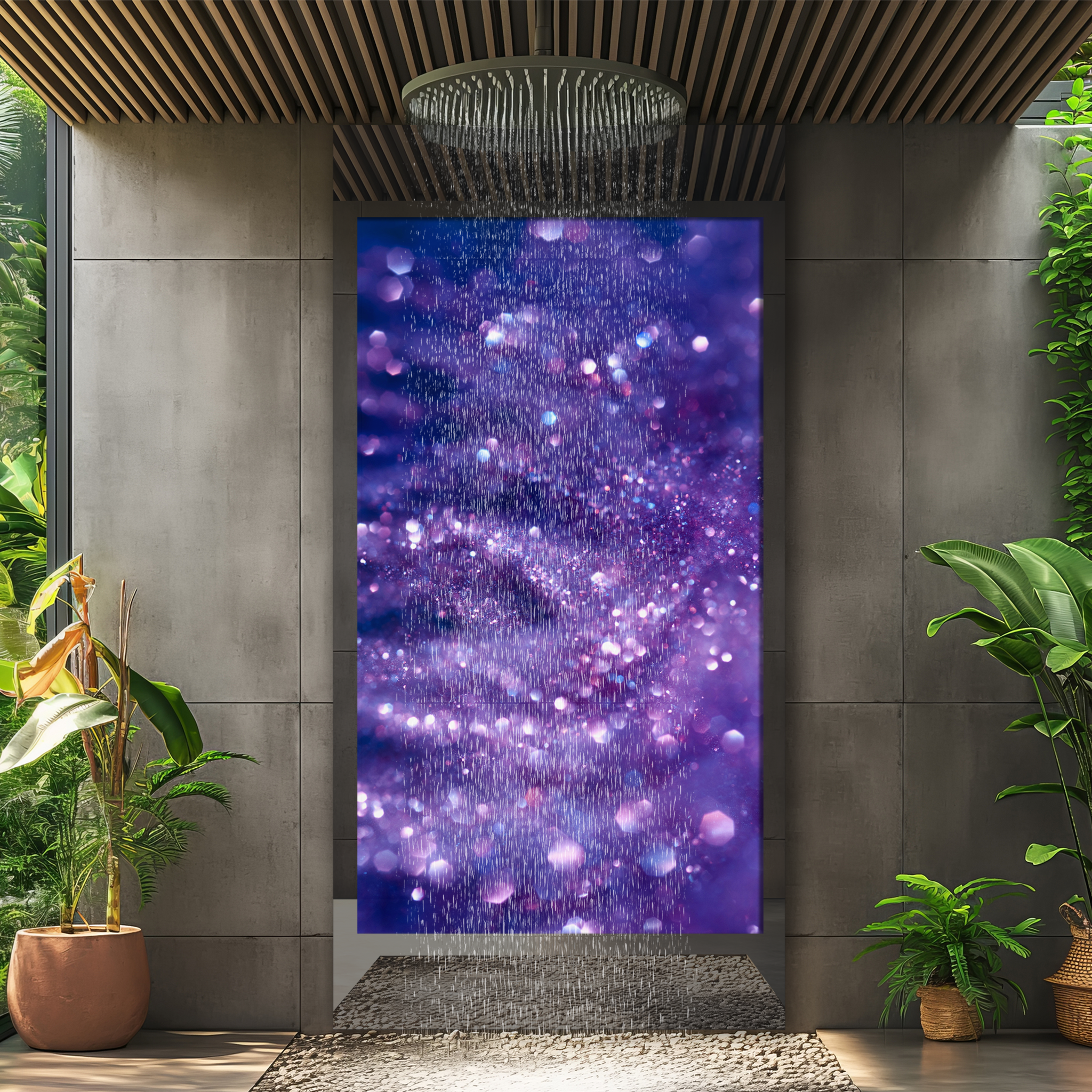

Switched On
Magic Black Glass
The screen leaves an almost 100% homogeneous black glass surface with some reflectivity on the front, when
turned off.
In our bespoke collections the screen can be placed flexibly at any place behind the glass.
Tech Specs
Mirror
Black Glass
Thickness: 8.4 mm
Surface: LSG Laminated Safety Glass
Tint: RAL 9005 Jet Black
Reflection: 8% +/- 5
Display area, when switched off: Visible

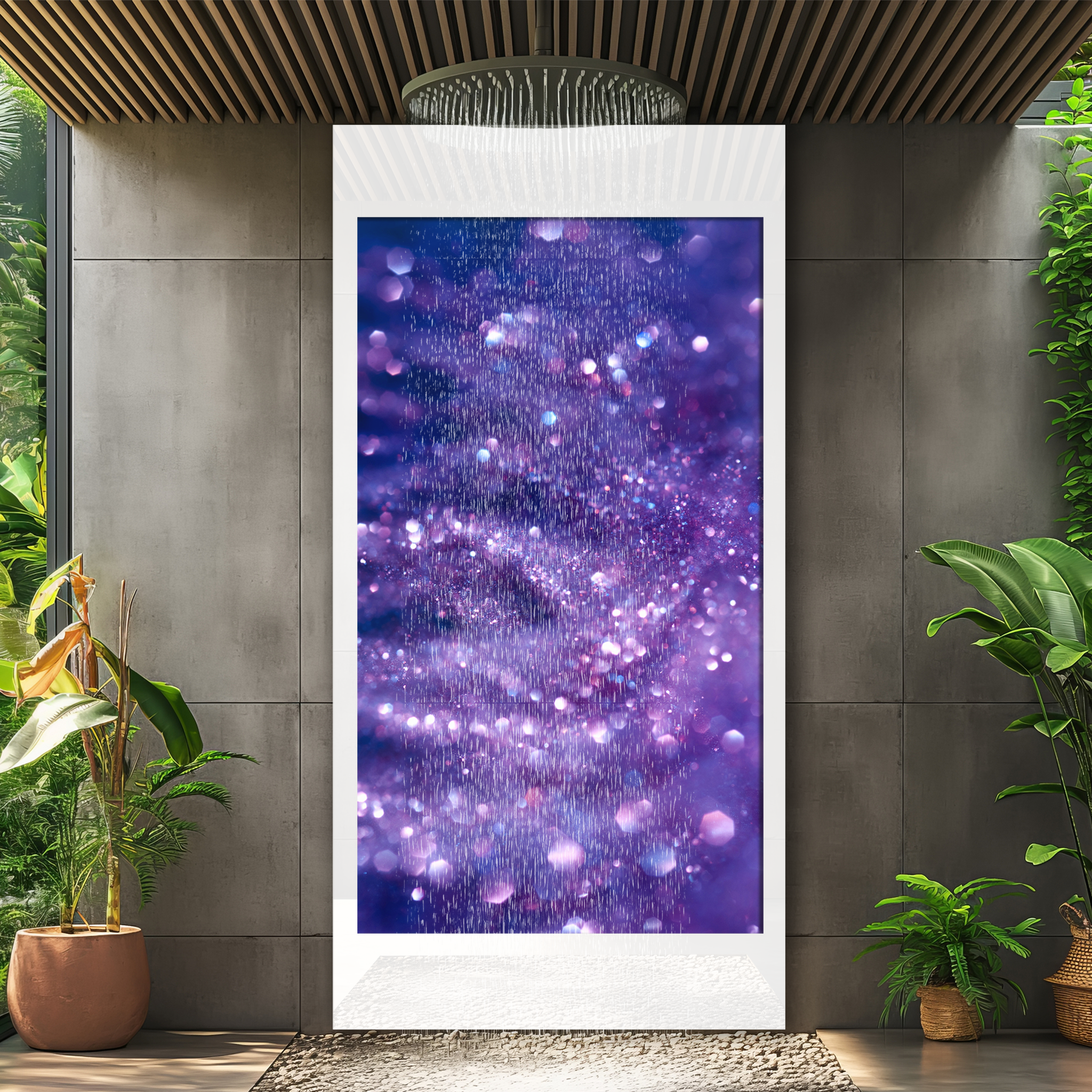

White Glass
Thickness: 8.4 mm
Surface: LSG Laminated Safety Glass
Tint: RAL 9010 Pure White
Reflection: 8% +/- 5
Display area, when switched off: Visible
Magic Black Glass
Thickness: 8.4 mm
Surface: LSG Laminated Safety Glass
Tint: similar to RAL 9005
Reflection: 35% +/- 5
Display area, when switched off: Invisible
Display
Screen Size: 55.0'' (1397 mm)
Portrait Orientation (Full Screen)
Visible Image Area: W 680 H 1209 mm (55.0'' diagonale)
Landscape Orientation (2in1 Upgrade)
Visible Image Area: W 680 H 382 mm (30.0'' diagonale)
Screen Size: 65.0'' (1639 mm)
Portrait Orientation (Full Screen)
Visible Image Area: W 803 H 1428 mm (65.0'' diagonale)
Landscape Orientation (2in1 Upgrade)
Visible Image Area: W 803 H 401 mm (35.0'' diagonale)
Screen Size: 86.0'' (2184 mm)
Portrait Orientation (Full Screen)
Visible Image Area: W 1066 H 1895 mm (86.0'' diagonale)
Landscape Orientation (2in1 Upgrade)
Visible Image Area: W 1066 H 600 mm (48.0'' diagonale)
Physical Resolution: 2160 x 3840
Picture Format: 9:16
Viewing Angle: Horizontal: Typical (Total) 178° Vertical: Typical (Total) 178°
Brightness: min. 900cd/m²
Connectivity
Video Inputs
Component: 3x RCA terminal, green (Y), blue (Pb), red (Pr)
Supported resolutions: 720p, 1080i, 1080p
HDMI 2.0: 3x HDMI terminal
Supported resolutions: 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p, UHD
Audio Inputs
Line Audio Input: 2x RCA terminal, white (L), red (R)
Other Inputs
USB: 1x USB terminal
RS 232: 1x D-SUB 9 pin male terminal
IR Input (Infrared): 1x Mini Jack 3.5 mm
DC Input: 1x DC Power Jack 2.1 mm
Audio Outputs
Speaker Output: 1x Phoenix Clip 4pin 2x 8W RMS @ 8 Ohms per channel
Line Audio Output: 1x Mini Jack 3.5 mm
Other Outputs
IR Output (Cable): 1x Mini Jack 3.5 mm
IR Output (LED): 1x Mini Jack 2.5 mm
DC Output 5V/12V: 1x Mini Jack 3.5 mm / max. 2.0A only one active voltage
USB Media Player
Audio: MP3, AAC, M4A, MP2
Picture: JPEG
Video: MPEG-4, H.264, AVI, MP4, MOV, DIVX
Document: DOC, PPT
OSD Languages
Deutsch, English, Español, Français, Italiano, Português, Chinese
Sound
Type: Invisible surface speaker, Stereo
Rated power: each 50W
Impedance: 8 Ohm
Sensitivity: 85 dB
Frequency Response: 60 - 20000 Hz
FAQs
How do I clean the product?
To avoid damages please ensure the observance of the following instructions:
• Use mild, fast-drying household spray glass cleaning solutions with ammonia and water. Ammonia concentration not to exceed 1.5% of weight.
• Use a lint-free paper cloth that is non abrasive or a soft cotton cloth without seams, buttons, plastic or metal parts.
• Pre-moisten glass surface with water or cleaning solution to loosen dried dirt and debris before attempting to wipe it away - never scrape with a metal blade or tool
• Never use abrasive household detergents as cleaning agents.
• Never attempt to remove debris /dirt from the glass by using a scraper or razor blade.
• Never trap abrasive particles between the cloth and the glass surface while wiping away the cleaning solution.
Is it easy to install the product?
For ad notam it is very important that our products can be installed easily and safely. Therefore, the Rainscreen should only be installed by qualified personnel who are familiar with the regulations for installations in wet and damp areas. A mounting frame for flush and watertight wall installation is included in the delivery scope.
Does the product come with integrated loudspeakers?
Yes, the product is equipped with invisible surface loudspeakers.
Is the screen completely invisible when switched off?
This depends on your selection of the glass type. We offer different glass types depending on your application needs. The Magic Black Glass completely vanishes the screen when turned off.
Doesn`t the humidity in bathrooms affect the product?
No, the product can be safely installed in bathrooms zone 0 (IPX5 rating).
For installations in wet-rooms specific installation guidelines apply. These regulations differ by region. Please contact a specialist for this. In Germany electrical installations are to be performed by a skilled technician, while observing the regulations of the Standard DIN VDE 0100 T.701.
